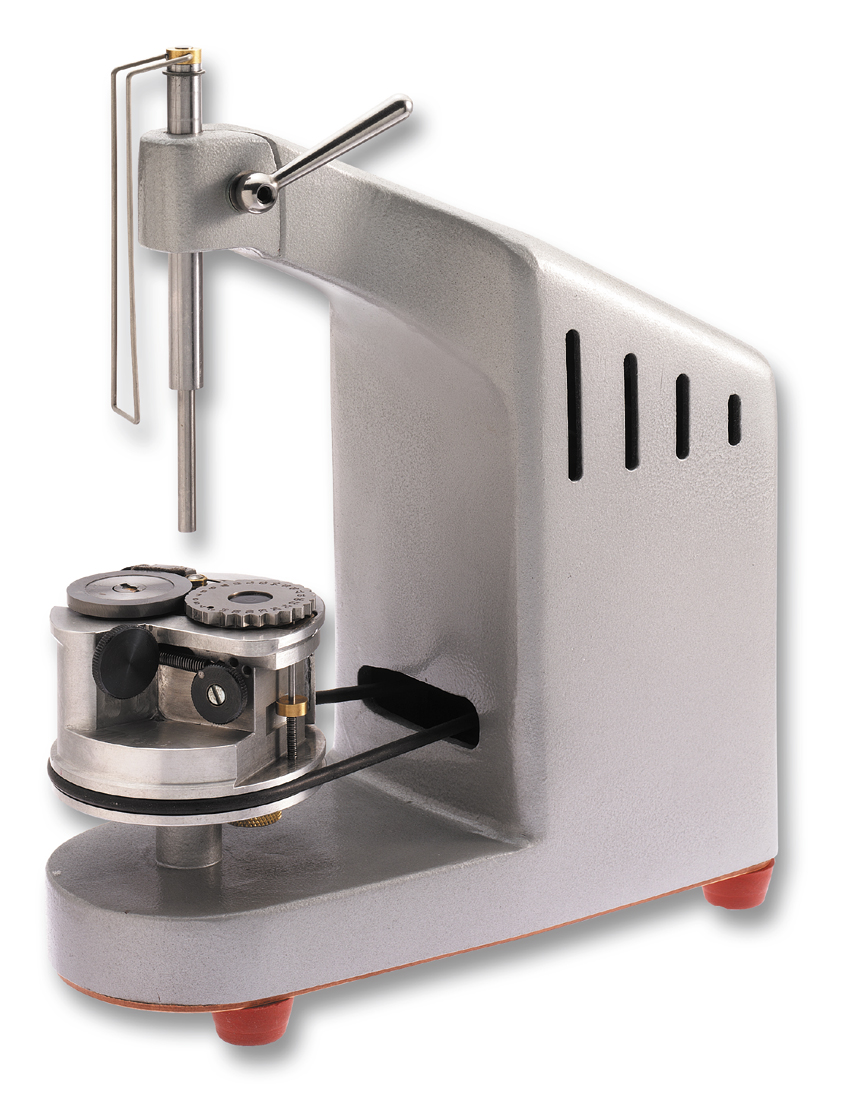

Rollimat with motor drive
Product number:
4565031
Packaging Unit:
1
Extra order! Delivery time approx. 6 weeks, return is not possible.
Downloads
| Article name: | Rollimat with motor drive |
|---|---|
| Brand: | Rollimat |
| Dimensions height mm: | 240,00 |
| Dimensions width mm: | 100,00 |
| External dimension length: | 220,00 |
| Gross weight grams: | 5.000 |
| Speed R/min: | 300 |
| Volt/Hz: | 230 / 50 |
| Watt: | 100 |
0 of 0 reviews
Login
No reviews found. Be the first to share your insights.
Replacements
Worn Widiascheiben can be re-sanded with a special grinding wheel. To this end, the disc must be removed and sent to us.
Width 4 mm, medium coarse. Other widths no longer available. Fits pivot polishers 4565031 and 209905. The device number is required for adaptation to the device.
Width 4 mm, medium fine Other widths no longer available. Fits pivot polishers 4565031 and 209905. The device number is required for adaptation to the device.
Product information "Rollimat with motor drive"
With carbide disc for pins from dia. 0.30 to 4.00 mm. br
Width of the burnishing disc 4.0 mm medium fine.
Application areas: br
for burnishing of br
- all clock pins
- minute wheel pins of pocket watches and some wristwatches
- anchoring pins of pendulum clocks with long fork
- plastic pins
- all round parts, such as main shafts, anchor pins, spring cores, bearing pins and a shafts.

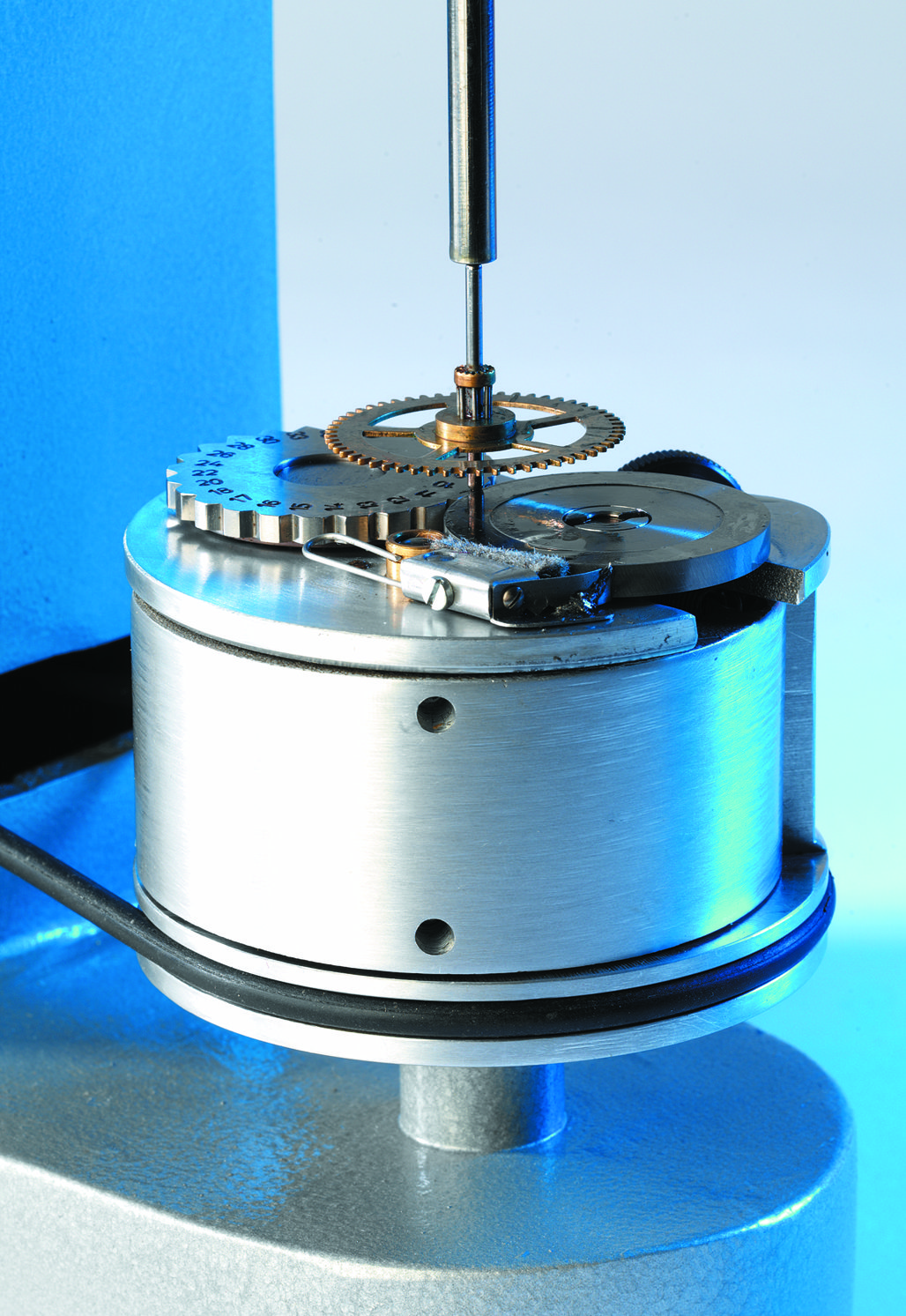

Easy to use: br
Measure the rough pin and clamp it into the matching groove,
lock pin thickness. Hold the wheel with your fingers and burnish it, as
indicated for the devices. The pin is then ready and will have
an excellent polish with the Widia burnishing disc. Switch on the device and burnish for about 1-2 seconds.
Width of the burnishing disc 4.0 mm medium fine.
Application areas: br
for burnishing of br
- all clock pins
- minute wheel pins of pocket watches and some wristwatches
- anchoring pins of pendulum clocks with long fork
- plastic pins
- all round parts, such as main shafts, anchor pins, spring cores, bearing pins and a shafts.
Easy to use: br
Measure the rough pin and clamp it into the matching groove,
lock pin thickness. Hold the wheel with your fingers and burnish it, as
indicated for the devices. The pin is then ready and will have
an excellent polish with the Widia burnishing disc. Switch on the device and burnish for about 1-2 seconds.
