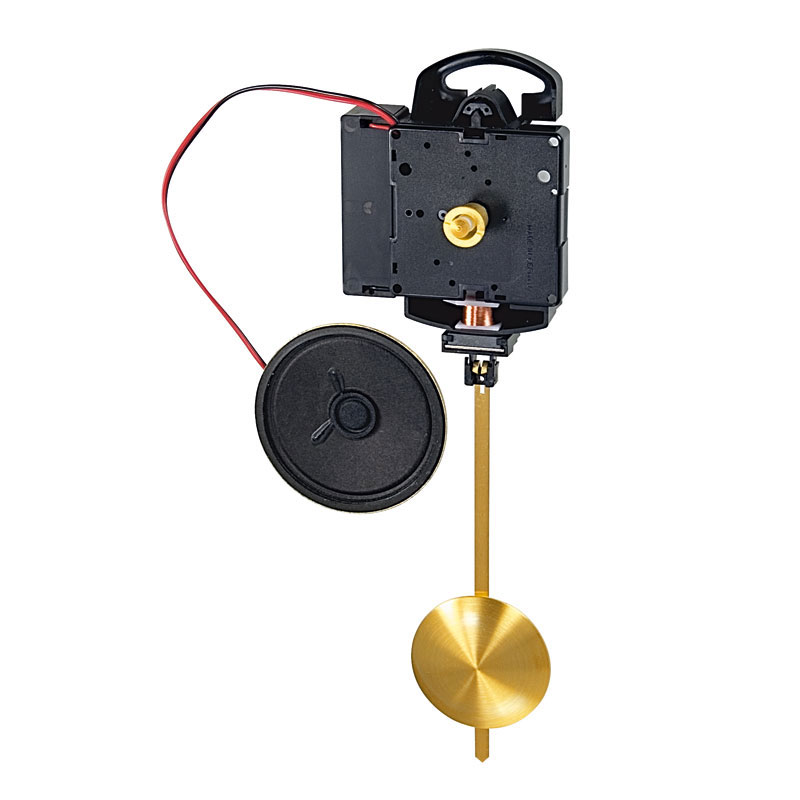

Quartz pendulum clock movement UTS 812 HSL 16mm, Westminster or Bim Bam
Product number:
244609
Packaging Unit:
1
No longer available
Downloads
| Article name: | Pendulum movement |
|---|---|
| Battery: | 2xLR6 |
| Brand: | UTS |
| Calibre number sorting: | 0812 |
| Central hole Ø mm: | 10,000 |
| Dimensions height mm: | 28,00 |
| Dimensions width mm: | 72,50 |
| External dimension length: | 108,00 |
| Fixing: | Central bolt |
| Function: | Pendulum |
| Hand fit: | Euro standard |
| Hand hole Ø second mm: | 0,80 |
| Hand wavelength mm: | 16,00 |
| Impact sound: | Westminster or Bim Bam |
| N° de calibre: | 812 |
| Punch type: | Loudspeaker |
| Shock cycle STD: | 4/4 |
| Square internal dimensions length mm: | 2,80 |
| Square internal dimensions width mm: | 3,50 |
| Type: | Quartz |
Manufacturer Informations
Name: Uhren Technik Schwarzwald
Street: Emil-Maier-Str. 3
City: 78655 Dunningen
Country: DE
Email: info@uhrentechnik-schwarzwald.de
Phone: 0049-7403-9217860
Login
Substitutes
Quartz pendulum movement CS UTS 812, Bim-Bam or Westminster HSL 18mm
Artikel-Nr.: 336469
Hand wavelength mm:
16.20
With electronically generated chime
Dial center hole Ø 10.2 mm.
Euphonious chime, 2 selectable melodies:
Full 4/4 westminster chime (hours are counted).
Bim-Bam chime at half and full hour (hours are counted).
Installation Ø 120 mm
Matching hands up to max. 120 mm
Second hand up to 80 mm
Equipment
Ø 66 mm speaker with clip-on holder, integrated hanger, complete installation accessories.
Caution
Now with side mountable speaker mount!
Without pendulum and hands.
Please order hands pair separately!
Product information "Quartz pendulum clock movement UTS 812 HSL 16mm, Westminster or Bim Bam"
Quartz pendulum clock movement UTS 812 HSL 16mm, Westminster or Bim Bam
