Ultrasonic unit EM D60 with drain and heating
Product number:
322873
Packaging Unit:
1
Delivery time on request
Downloads
Application: | with drain |
---|---|
Article name: | Emag EM D-60 with drain |
Brand: | Emag |
Content: | 6,00 |
Dimensions height mm: | 290 |
Dimensions width mm: | 175 |
External dimension length: | 330 |
Gross weight grams: | 4.800 |
Inside length mm: | 302 |
Internal dimensions depth mm: | 150 |
Internal dimensions width mm: | 152 |
Special feature: | with heater |
Unit content: | litres |
Volt/Hz: | 230 / 50 |
Watt: | 240-320 |
Manufacturer Informations
Name: EMAG AG
Street: Gerauer Str. 34
City: 64546 Mörfelden
Country: DE
Email: info@emag-germany.de
Phone: +49 (0) 6105 406 700
0 of 0 reviews
Login
No reviews found. Be the first to share your insights.
Accessoires (optional)
The round basket for all common ultrasonic cleaning devices allows you to safely and effortlessly clean small parts, such as jewellery, jewellery parts, rivets, nuts, and coins. The small shape and the long holders provide hold for the basket control at all times and eliminate the problem of parts slipping through the mesh. - Dimensions: 5 x 5 cm (H x W) - Material: stainless steel - With metal holder for optimum grip on the device
Application:
Emag EM-D40 and D60-EM
Special stainless steel cover with 2 glass beakers (incl. cover and rubber ring) for Emmi 30 for gentle cleaning and easy addition and removal of smaller objects, such as springs, nozzles, screws, needles, etc. Allows you to work simultaneously with different liquids.
Includes 2 glasses (600ml each).
For devices: Emag EM D-40 and EM D-60, SKU 322872 and 322873)
Dimensions: 325 x 175 x 230 mm

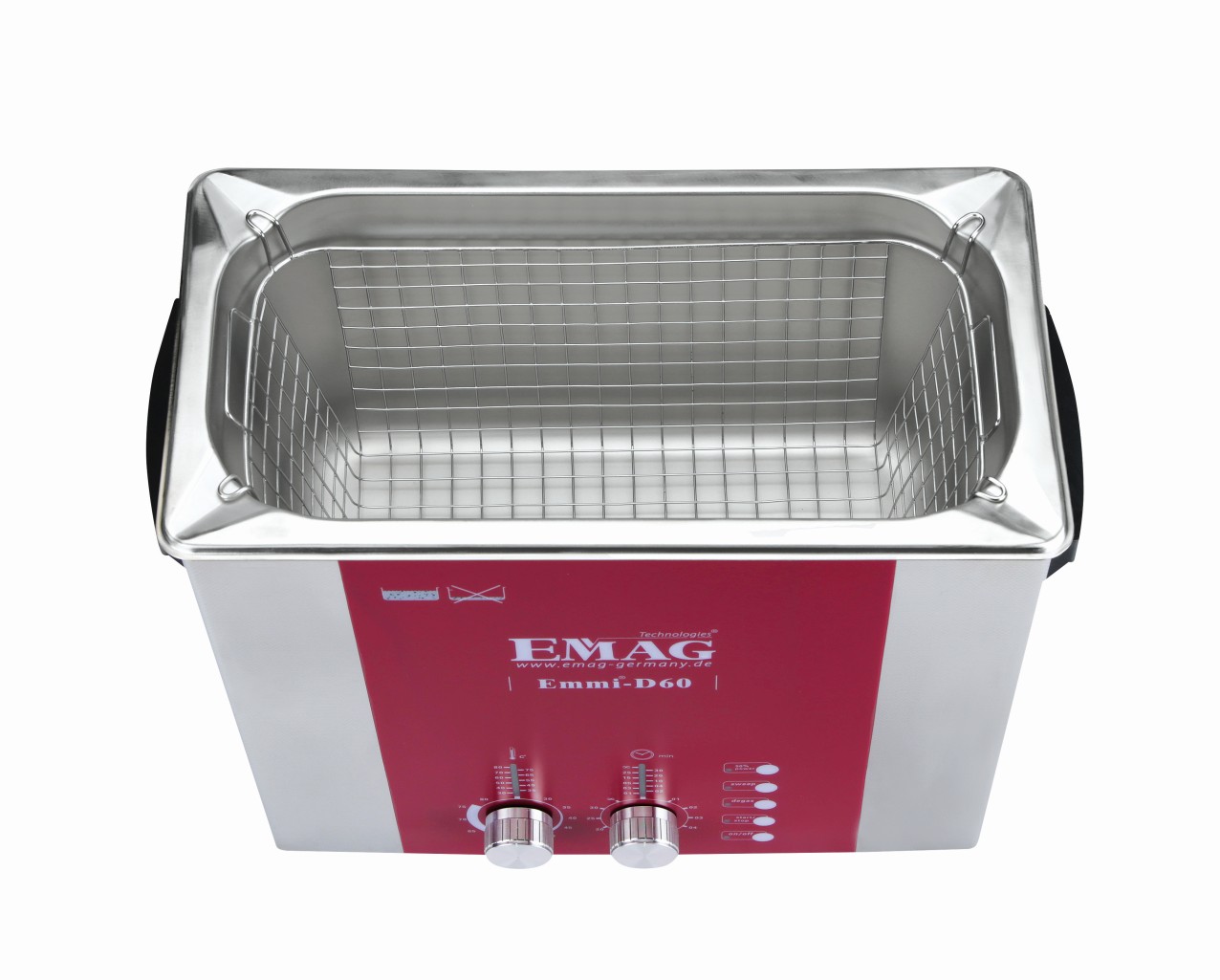

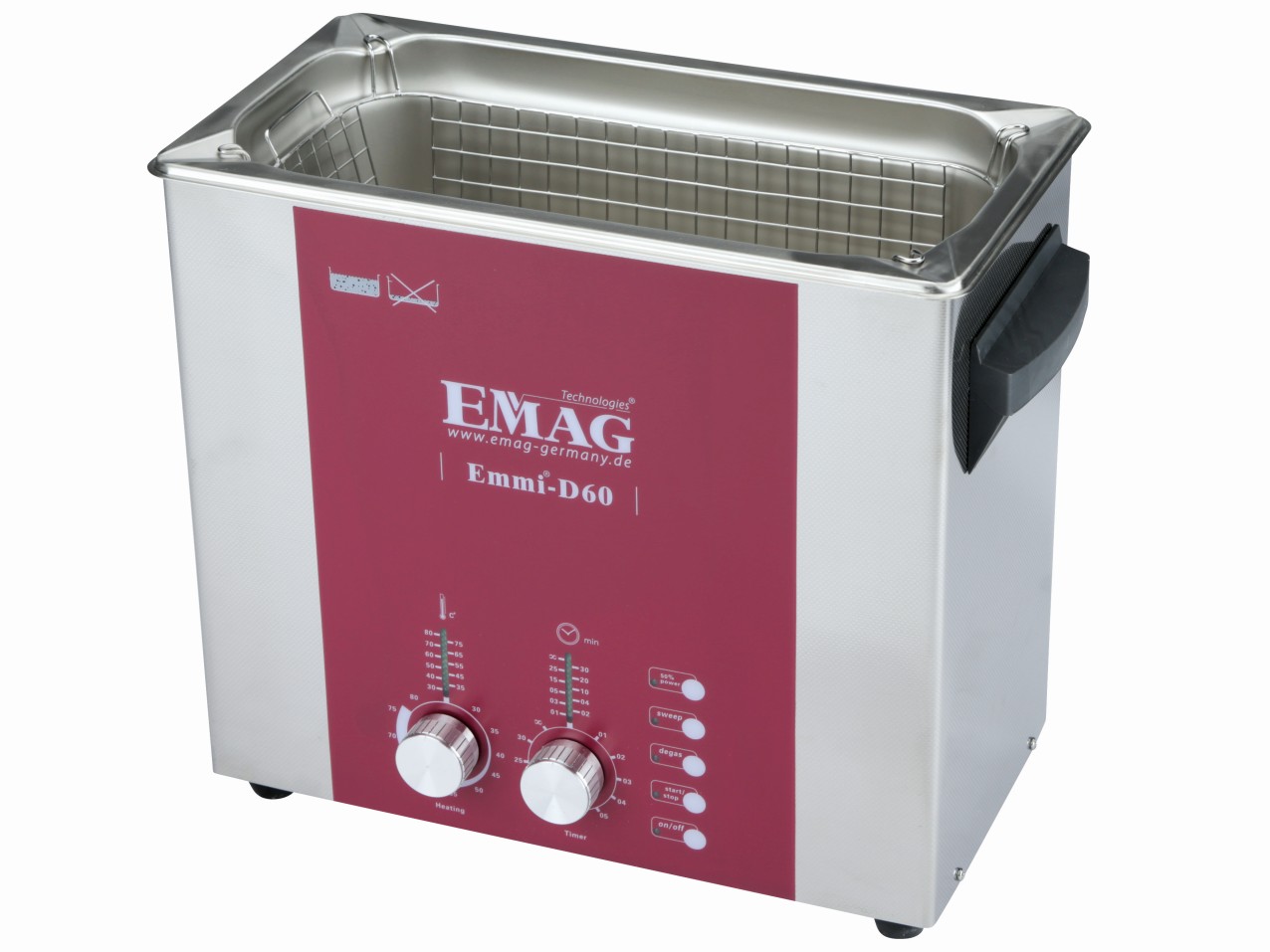

Product information "Ultrasonic unit EM D60 with drain and heating"
The ultrasonic cleaner Emmi D60 in the digital series by EMAG provides lasting, efficient quality and performance, ideally suited for any workshop.
Universal device with stainless steel oscillation tray and stainless steel housing.
Timer 1-60 min., continuous operation, drain cock, and heating.
The stainless steel tray is constructed in industrial quality and has been designed and manufactured specifically for this unit (no Gastro container). The tray has the perfect balance: Walls that are not thick to prevent proper transmission of the ultrasonic vibrations, and yet providing optimum strength and stability.
Dimensions:
- Device exterior (L x W x H): 330 x 175 x 225 mm
- Tray inside (L x W x H): 302 x 152 x 100 mm
- Basket inside (L x W x H): 280 x 140 x 85 mm
Capacity:
Tray capacity: 6.0 litres
Filling volume: 5.4 litres
Features:
- Oscillation tray: stainless steel 1.4301
- Case: stainless steel 1.4301
- Ingress protection: IP 32
- Drain cock: yes
- Timer: 1-60 min / continuous operation
- Heating: 20-80 °C
- Power control: 50% / 100%
- Sweep technology: yes (increase of regular ultrasonic power for particularly heavy contamination)
- Degas function: yes (degassing of the water supply (e.g., oxygen) prior to start-up results in optimum ultrasonic power)
- By activating the sweep function, the device achieves a peak power of up to 320 watts.
Technical Specifications:
- Oscillating system: 3 PZT broad beam oscillating system
- HF generator: overload protected, constant power
- Mode of operation: simple half-wave
- Operating frequency: approx. 45 kHz
- SweepTec: 50-60% power increase
- Ultrasonic power: 240 watts
- Heating power: 120 watts
- Power supply voltage: 50/60 Hz
- Power supply: 220 - 240 V
- Total weight: approx. 4.8 kg
Includes:
- Ultrasonic unit EM D-60
- 1 cover for EM D-60
- 1 basket for EM D-60
German technology and manufacturing under certified quality control.
