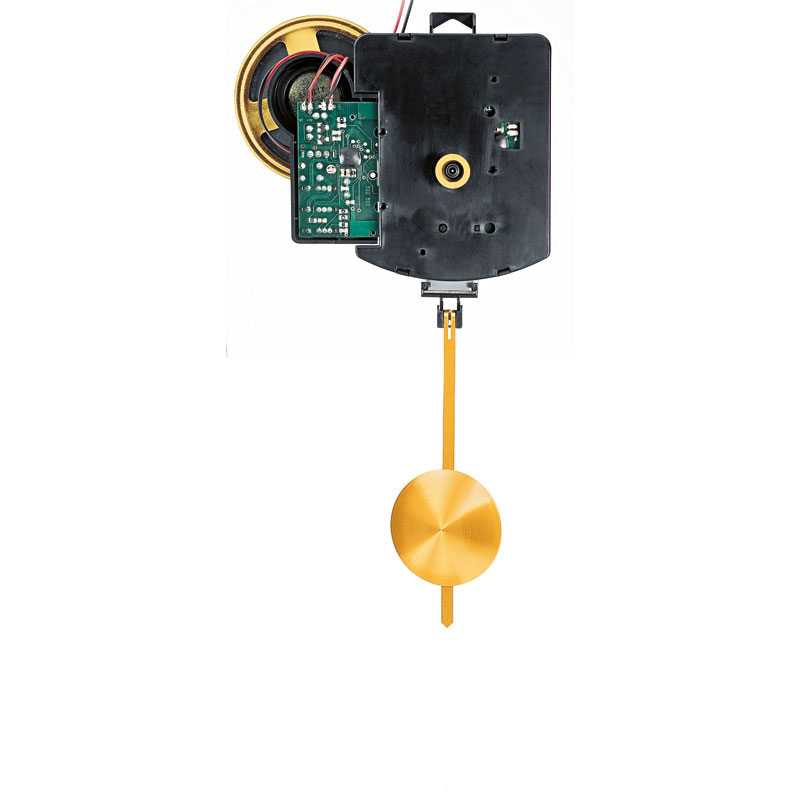

Radio controlled clock movement FW Bim-Bam/ Westminster UTS 700, length 12mm
Product number:
334441
Packaging Unit:
1
No longer available
Downloads
| Article name: | Radio controlled pendulum movement |
|---|---|
| Battery: | 2xLR6 / 2xLR14 |
| Brand: | UTS |
| Calibre number sorting: | 0700 |
| Central hole Ø mm: | 10,200 |

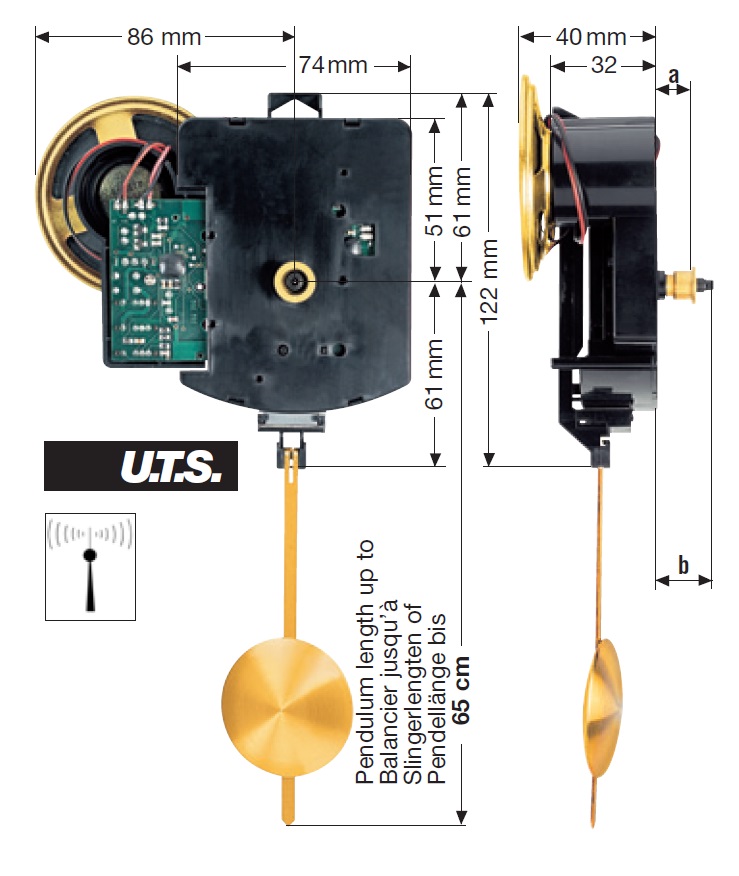

| Dimensions height mm: | 40,00 |
| Dimensions width mm: | 123,00 |
| External dimension length: | 122,00 |
| Fixing: | Central screw |
| Function: | Radio controlled, pendulum |
| Hand wavelength mm: | 12,00 |
| Impact sound: | Bim Bam or Westminster |
| N° de calibre: | 700 |
| Punch type: | Speaker |
| Special feature: | up to 4 mm |
| Type: | Radio controlled |
Manufacturer Informations
Name: Uhren Technik Schwarzwald
Street: Emil-Maier-Str. 3
City: 78655 Dunningen
Country: DE
Email: info@uhrentechnik-schwarzwald.de
Phone: 0049-7403-9217860
Login
Substitutes
Quartz pendulum movement CS UTS 812, Bim-Bam or Westminster HSL 22mm
Artikel-Nr.: 336468
Hand wavelength mm:
20.10
With electronically generated chime
Dial center hole Ø 10.2 mm.
Euphonious chime, 2 selectable melodies:
Full 4/4 westminster chime (hours are counted).
Bim-Bam chime at half and full hour (hours are counted).
Installation Ø 120 mm
Matching hands up to max. 120 mm
Second hand up to 80 mm
Equipment
Ø 66 mm speaker with clip-on holder, integrated hanger, complete installation accessories.
Caution
Now with side mountable speaker mount!
Without pendulum and hands.
Please order hands pair separately!
Quartz pendulum movement CS UTS 812, Bim-Bam or Westminster HSL 18mm
Artikel-Nr.: 336469
Hand wavelength mm:
16.20
With electronically generated chime
Dial center hole Ø 10.2 mm.
Euphonious chime, 2 selectable melodies:
Full 4/4 westminster chime (hours are counted).
Bim-Bam chime at half and full hour (hours are counted).
Installation Ø 120 mm
Matching hands up to max. 120 mm
Second hand up to 80 mm
Equipment
Ø 66 mm speaker with clip-on holder, integrated hanger, complete installation accessories.
Caution
Now with side mountable speaker mount!
Without pendulum and hands.
Please order hands pair separately!
Quartz pendulum clock movement Hermle 2214, HSL 15mm, Westminster or Bim Bam
Artikel-Nr.: 4123-104678
Hand wavelength mm:
15.00
Euphonius chime, 2 selectable melodies:
- full 4/4 westminster stroke (hours are counted)
- Bim-Bam stroke at half and full hour (hours are counted)
- Sleep mode possible with reduced volume
- Volume adjustable: 100% / 50% / 0%
Installation Ø: 120mm
Please order matching hands separately.
Equipment: Ø 66 mm speaker with clip-on holder, integrated hanger,
complete installation accessories
Quartz pendulum clock movement Hermle 2214, HSL 20mm, Westminster or Bim Bam
Artikel-Nr.: 4123-104780
Hand wavelength mm:
20.00
Euphonius chime, 2 selectable melodies:
- full 4/4 westminster stroke (hours are counted)
- Bim-Bam stroke at half and full hour (hours are counted)
- Sleep mode possible with reduced volume
- Volume adjustable: 100% / 50% / 0%
Installation Ø: 120mm
Please order matching hands separately.
Equipment: Ø 66 mm speaker with clip-on holder, integrated hanger,
complete installation accessories
Product information "Radio controlled clock movement FW Bim-Bam/ Westminster UTS 700, length 12mm"
Dial center hole Ø 10.2 mm
Time synchronization automatically on the hour.
With fully electronic, especially powerful punch.
3 selectable strokes:
Full 4/4 Westminster strike
Bim-Bam strike at half and full hour (hours are counted)
Westminster or Bim Bam strike only on the hour.
Equipment: Blower switch and -absteller, night setback or shutdown, volume control.
Built-in radio antenna, fully automatic time adjustment with 2 motors, 80 mm second hand,
loose but hard-wired Ø 66 mm speaker, integrated hanger and installation accessories.
Please note: To avoid accidentally moving the hands,
protect it with a glass or bezel if possible.
Full metal housings or dials may adversely affect reception of timing signals.
Installation Ø Max. 190 mm
Please order pointer pair separately!
Time synchronization automatically on the hour.
With fully electronic, especially powerful punch.
3 selectable strokes:
Full 4/4 Westminster strike
Bim-Bam strike at half and full hour (hours are counted)
Westminster or Bim Bam strike only on the hour.
Equipment: Blower switch and -absteller, night setback or shutdown, volume control.
Built-in radio antenna, fully automatic time adjustment with 2 motors, 80 mm second hand,
loose but hard-wired Ø 66 mm speaker, integrated hanger and installation accessories.
Please note: To avoid accidentally moving the hands,
protect it with a glass or bezel if possible.
Full metal housings or dials may adversely affect reception of timing signals.
Installation Ø Max. 190 mm
Please order pointer pair separately!
