Laser engraving machine, 20W
Product number:
345051
Packaging Unit:
1
No longer available
Article name: | Laser engraving machine |
---|---|
Dimensions height mm: | 585,00 |
Dimensions width mm: | 358,00 |
External dimension length: | 550,00 |
Gross weight grams: | 47500,00 |
Manufacturer name: | IMP-L100-20W |
Unit length: | mm |
Volt/Hz: | 100-240V |
Watt: | 20 |
0 of 0 reviews
Login
No reviews found. Be the first to share your insights.
Accessoires (optional)
Accessory for Laser engraving machines IMP-L100-20W and -30W (References 345051 & 345052)
Dimension: 243x260x330mm
Gewicht: 1000g
Accessory for Laser engraving machines IMP-L100-20W and -30W (References 345051 & 345052)
Accessory for Laser engraving machines IMP-L100-20W and -30W (References 345051 & 345052)
Dimensions: 243x260x330mm
Gewicht: 1000g
Accessory for Laser engraving machines IMP-L100-20W and -30W (References 345051 & 345052)
Dimension blower set: 243x260x330mm
Gewicht: 16000g
Accessory for Laser engraving machines IMP-L100-20W and -30W (References 345051 & 345052)
Accessory for Laser engraving machines IMP-L100-20W and -30W (References 345051 & 345052)
Weight ca. 45g
Fume extraction system for light duty laser marking, coding and engraving applications.
BOFA’s AD 350 fume extraction and filtration system effectively removes potentially harmful fumes and particulates created during the laser marking process. By maintaining a dust-free operating area, the system helps to protect valuable equipment, maintain a higher quality mark, and reduce the number of rejects and contaminants.
The quiet and compact AD 350 effectively removes potentially harmful fumes and particulate created during light duty laser marking, coding and engraving applications making it ideal for use in schools, sign making workshops and small scale industrial environments.
Standard features:
- Digital flow control system
- Blower with high airflow and pressure
- Replacement filters
-Low noise levels
- Filter condition indicator
AD 350 Specifications
- Dimensions (H x W x D): 23.2 x 14.8 x 14.8”
- Cabinet Construction: Brushed stainless steel /
- Powder coated mild steel
- Airflow / Pressure: 223cfm / 96mbar
- Electrical Data: 115-230v 1ph 50/60Hz Full load current: 12.5 amps / 1.1kw
- Noise Level: < 62dBA
- Weight: 88lbs
Deeppleat Pre Filter Specifications
- Surface Media Area: 6m2 approx
- Filter Media: Glass Fiber
- Filter Media Construction: 100mm DeepPleat
- construction with Webbing
- Spacers
- Filter Efficiency: F8 (95% @ 0.9 microns)
Combined Filter Specifications
- HEPA Filter Media: Glass Fiber
- HEPA Media Contruction: Maxi Pleat Construction with Webbing Spacers
- Filter Housing: Zintec Mild Steel
- Treated Activated Carbon: 19.8 lbs
- Filter Efficientcy: 99.997% @ 0.3 microns
Practical digital calipers made of user-friendly, surface-insensitive fiberglass (ideal e.g. for working with engraving machines to avoid scratching the surfaces, as can happen with metal calipers)
• Digital display
• With cross tips and depth gauge
• Made of fiberglass
• Display 8.5mm
• Readability 0.1mm or 0.01 "
• Measuring range 150mm
• Beak length 40mm
• Weight: 90g
Substitutes
Watt:
20
Fiber Laser Marking Machine for Jewelry
The 3rd generation fully automatic laser marking machine for jewelers, L3
L3 is a laser marking and cutting machine especially made for jewelry, to help jewelers utilize laser machines quickly and easily for their jewelry work. It has been developed by listening to the experiences of many jewelers and their specific demands regarding laser machines. Our main goal in the L3 development process was to offer an easy, fast, and convenient method of performing laser related jewelry work that is accessible to anyone, even novices. This goal has been achieved through our automated features, simplicity of software, powerful performance, and intuitive design for using the machine.
This 3rd-generation laser marking machine, L3, is mainly used at jewelry workshops to mark and produce jewelry products but is also very useful for performing marking services at jewelry retail stores, thanks to its compact and modern design, low noise operation and small footprint.
Uses:
- Black & white marking
- Color marking
- Photo marking
- Cutting
- Deep engraving
- Cleaning
Functions:
- Designed for jewelry
- Black, white and Color marking
- Camera positioning and auto focusing
- Load-N- Go docking station
- Quiet operation thanks to adaptive
- cooling system
- Easy and quick change between
- pendant and ring modes
Model: L3-20W
Dimension: 404mm (W) x 556mm (H) x 590mm (D)
Marking Area: 112 x 112mm
Max. Material Height: 100mm
Max Z Stroke: 100mm
Chamber Size: 350 x 100 x 170mm (W x H x D)
Safety Door Open Height: 266mm
Max Material Weight: 20kg
Weight: 44kg
Power Consumption: 290W
Air Cooling

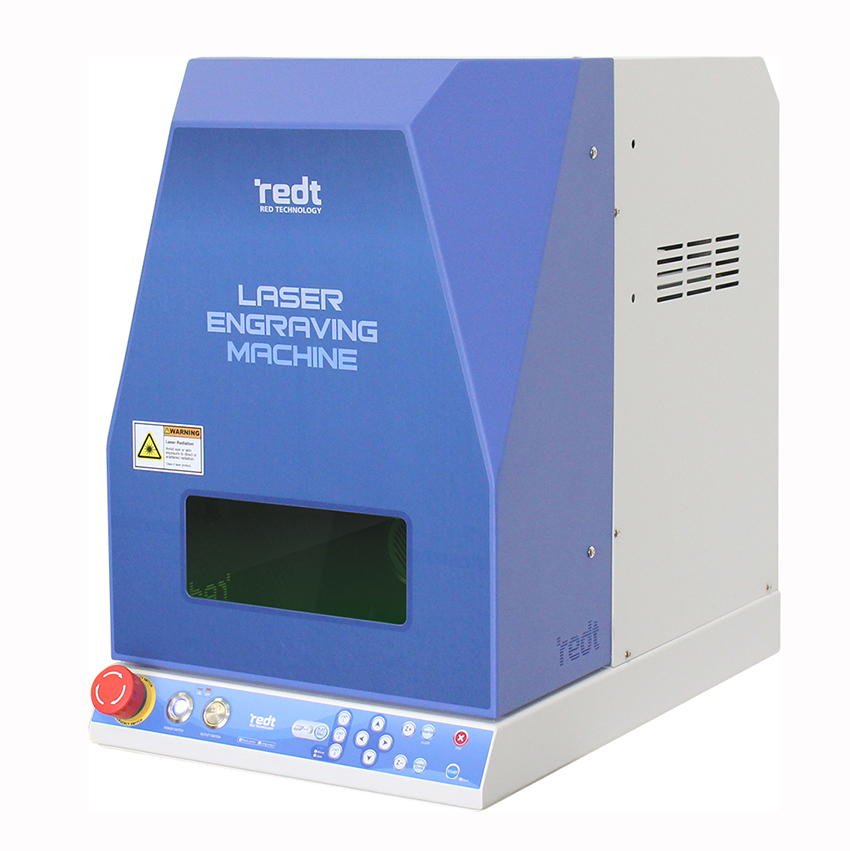

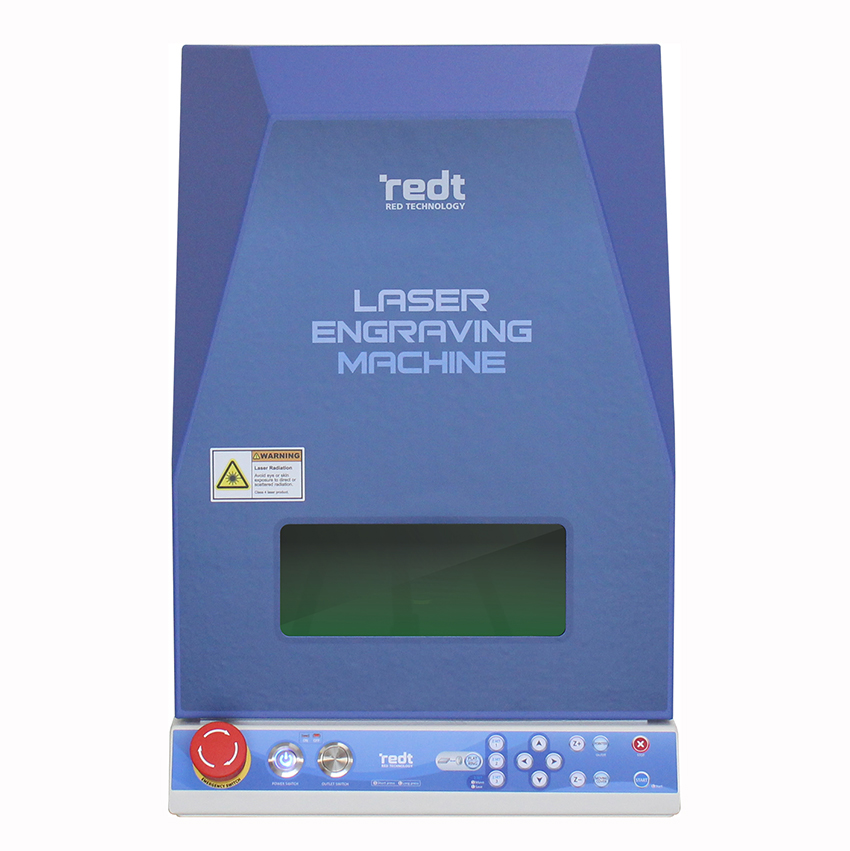

Product information "Laser engraving machine, 20W"
Marks with light
The IMP-L100 is a laser engraving machine that can engrave high-precision markings very quickly and easily on a wide variety of materials using the renowned Magic Art 5 engraving software. The IMPL100 can process materials, including aluminum, brass, stainless steel and leather. The machine creates hatches, contours or blackenings.
Applications
• Barcodes, QR codes, serial numbers, initials, samples and letters of 0,5 mm in size
• Fingerprints, logos and photos
• Flat or cylindrical workpieces
• Inside and outside of rings, bracelets and watch cases
Scope of delivery
• Laser engraving machine, software MagicArt 5, suction set (Ref. 345056)
The IMP-L100 is a laser engraving machine that can engrave high-precision markings very quickly and easily on a wide variety of materials using the renowned Magic Art 5 engraving software. The IMPL100 can process materials, including aluminum, brass, stainless steel and leather. The machine creates hatches, contours or blackenings.
Applications
• Barcodes, QR codes, serial numbers, initials, samples and letters of 0,5 mm in size
• Fingerprints, logos and photos
• Flat or cylindrical workpieces
• Inside and outside of rings, bracelets and watch cases
Scope of delivery
• Laser engraving machine, software MagicArt 5, suction set (Ref. 345056)
