Solder fume extractor LDA 1
Product number:
4580050
Packaging Unit:
1
From Stock
| Article name: | Solder fume extractor LDA 1 |
|---|---|
| Brand: | Distelkamp |
| Dimensions height mm: | 55 |
| Dimensions width mm: | 140 |
| External dimension length: | 150 |
| Gross weight grams: | 1.282 |
| Performance: | 170 m³/h |
| Volt/Hz: | 230 / 50 |
| Watt: | 18 |
Manufacturer Informations
Name: Distelkamp-Electronic
Street: Zum Bornberg 1-3
City: 67659 Kaiserslautern
Country: DE
Email: info@di-li.eu
Phone: 0631-78319
0 of 0 reviews
Login
No reviews found. Be the first to share your insights.
Accessoires (required)

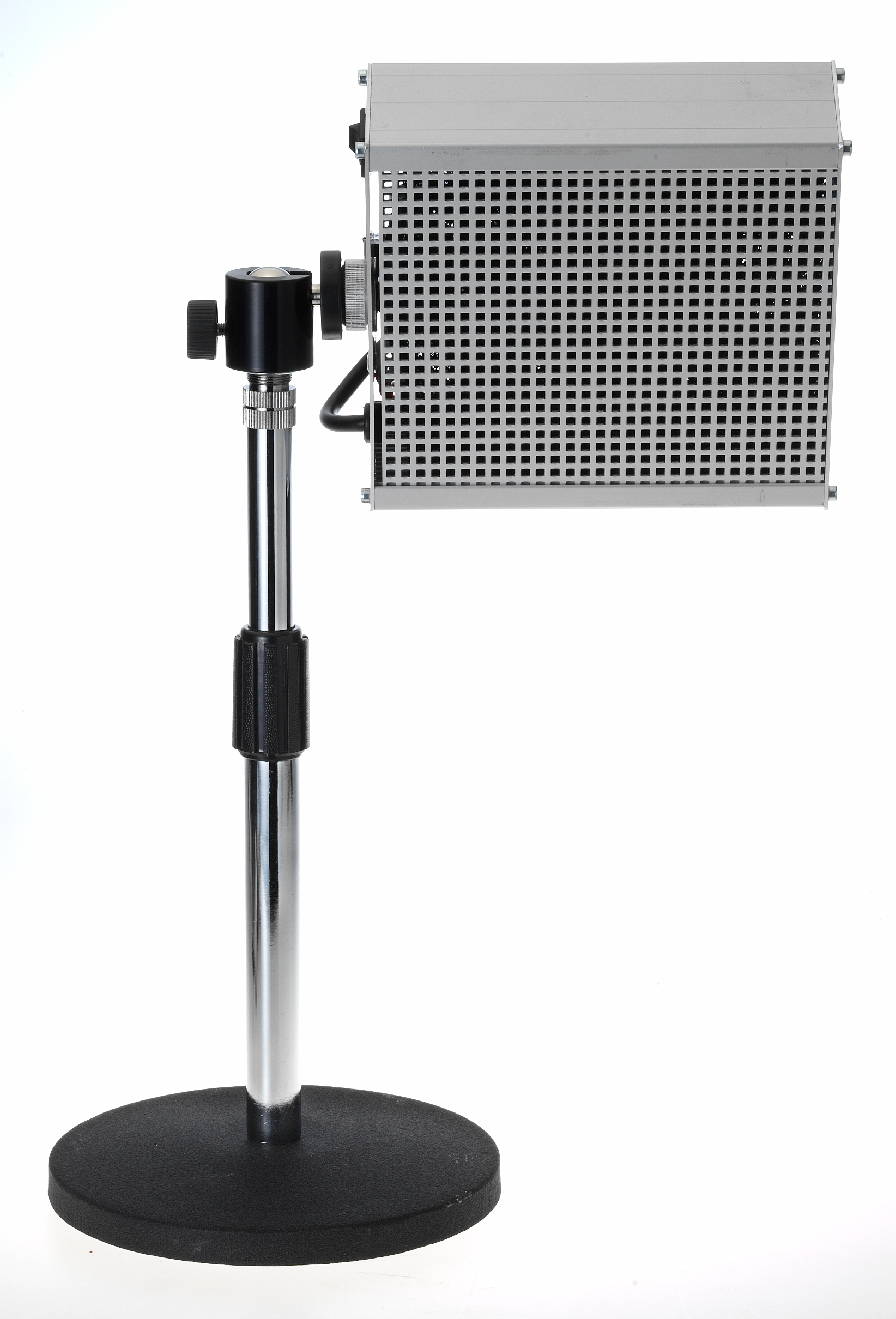

With heavy base plate, height adjustable from 210 to 360 mm, with ball joint head.
Product information "Solder fume extractor LDA 1"
The extractors with robust aluminium housing suitable for almost all workstations where fumes must be extracted, such as soldering and bonding stations, goldsmith workstations, etc. br The extractor is placed as close as possible to the soldering station. However, the distance must be large enough to ensure that the flame will not reach the extractor. The resulting noxious fumes are absorbed by the activated carbon filter. br Compared to extraction systems with permanently installed pipework, this extractor has the advantage that the workstation layout remains flexible. They have a very low energy consumption and are virtually maintenance free. Only the built-in activated carbon filter should be replaced from time to time. With 2 low-noise fans. Extration rate: 170 m3/h 230 V / 50 Hz, 18 Watt. Does not include table stand.
