GRS Accu Finish Series One sharpening system, premium package
Product number:
310843
Packaging Unit:
1
No longer available
| Article name: | Accu Finnish Series One Premium |
|---|---|
| Brand: | GRS |
| Catalogue item No.: | 001-605-220 |
Manufacturer Informations
Name: Rudolf Flume Technik GmbH
Street: Hachestr. 66
City: 45127 Essen
Country: DE
Email: info@flume.de
Phone: 0049-201-18990
0 of 0 reviews
Login
No reviews found. Be the first to share your insights.
Accessoires (optional)
Grain size:
K 260
Fits graver grinder 4546088.
Grain size:
K 600
Fits graver grinder 4546088.
Grain size:
1/4 ? (extra-fine)
Used in conjunction with the ceramic disc or other surfaces. The spray bottles contain about 60 ml diamond spray each.
Grain size:
1 ? (medium)
Used in conjunction with the ceramic disc or other surfaces. The spray bottles contain about 60 ml diamond spray each.
Grain size:
3 µ (coarse)
Used in conjunction with the ceramic disc or other surfaces. The spray bottles contain about 60 ml diamond spray each.
Grain size:
K 180
Fits graver grinder 4546088.
Dimensions Ø mm:
150.000
Fits graver grinder 4546088.
Using this precision grinding wheel blank made of aluminium, special grinding or polishing wheels can be produced, by mounting emery paper, leather, and similar materials.
Grinding wheel stand for GRS grinding wheels
Using the GRS cast iron grinding wheel, you can achieve an extra-fine high-gloss polish, especially with carbide tools. This precision-polished disc made of high-quality cast iron offers advantages for tool grinding not even matched by the latest hightech abrasive materials. Both disc sides are identically machined and thus offer the service life of two discs in one. For tool steel, high-speed steel (HSS), or hardened carbon steel, we recommend the GRS ceramic grinding wheel #002-415. 1 micron diamond spray (#002-754-NF) is recommended.
Dimensions Ø mm:
125.000
Fits graver grinder 4546088.
Using this precision grinding wheel blank made of aluminium, special grinding or polishing wheels can be produced, by mounting emery paper, leather, and similar materials.
This mount is used only to produce gravers with 120°. Many inexperienced engravers have trouble achieving consistently accurate sharpening results. Professionals want to save the time when sharpening in order to devote more of their productivity at the workbench. The EasyGraver toolholder is based on standard geometries that have been used for many years by hundreds of engraving artists and jewellery manufacturers all over the world according to our observations. Please note that the vertical grabpole (#003-502) IS NOT INCLUDED and must be purchased separately. The pole positions #1 and #2 are intended for aligning or reshaping the graver base for a V-tip of 120 degrees. The lateral positions #3 and #4 are then used for sharpening a parallel relief grinding. After sharpening the relief grindings, the user can sharpen point angle in the centre pole position and easily adjust the length of the relief grindings.
This mount is used only to produce gravers with 105°. Many inexperienced engravers have trouble achieving consistently accurate sharpening results. Professionals want to save the time when sharpening in order to devote more of their productivity at the workbench. The EasyGraver toolholder is based on standard geometries that have been used for many years by hundreds of engraving artists and jewellery manufacturers all over the world according to our observations. Please note that the vertical grabpole (#003-502) IS NOT INCLUDED and must be purchased separately. The pole positions #1 and #2 are intended for aligning or reshaping the graver base for a V-tip of 105 degrees. The lateral positions #3 and #4 are then used for sharpening a parallel relief grinding. After sharpening the relief grindings, the user can sharpen point angle in the centre pole position and easily adjust the length of the relief grindings.
Grain size:
1/2 ? (fine)
Used in conjunction with the ceramic disc or other surfaces. The spray bottles contain about 60 ml diamond spray each.
Grain size:
K1200
Fits graver grinder 4546088.

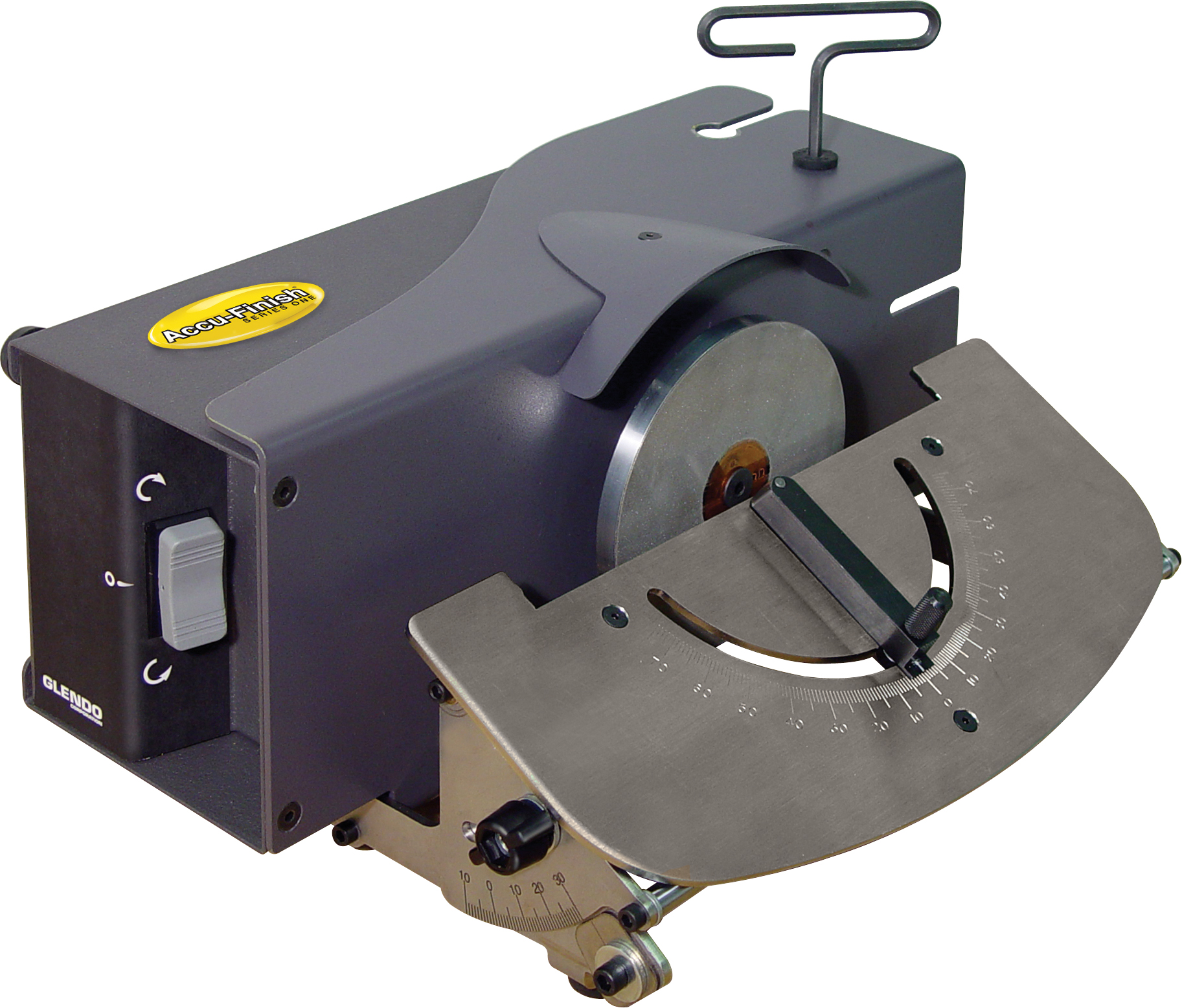

Product information "GRS Accu Finish Series One sharpening system, premium package"
The Accu-Finish Series ONE is designed for smaller workshops to create quality cutting edges on tools made of carbide, ceramics, cemented carbides, high-speed steel (HSS), as well as many PCD/CBN tools.
This machine with low speed is easy and safe to operate and ensures well-sharpened cutting tools.
The Series ONE features individual table height and protractor.
Compact and rugged construction.
-Motor: continuous operation, overheating protection, left and right rotation, 220 V / 50 Hz
-Spindle drive: double belt reduction: 240-20 RPM
-Suitable diamond grinding wheels: 125 or 150 mm diameter with 12.7 mm hole and 3.2mm drive pin holes
-Guide plate: Solid stainless steel with built-in protractor and removable tool guide. Bearing with sliding carriage on precision foundation rods. Can be locked in any position or moved toward the grinding wheel.
-Dimensions: approx. 46 × 43 × 28 cm.
Includes:
Accu-Finish Series ONE machine, diamond grinding wheels, grits 260, 600, and 1200, and insert holder.
This machine with low speed is easy and safe to operate and ensures well-sharpened cutting tools.
The Series ONE features individual table height and protractor.
Compact and rugged construction.
-Motor: continuous operation, overheating protection, left and right rotation, 220 V / 50 Hz
-Spindle drive: double belt reduction: 240-20 RPM
-Suitable diamond grinding wheels: 125 or 150 mm diameter with 12.7 mm hole and 3.2mm drive pin holes
-Guide plate: Solid stainless steel with built-in protractor and removable tool guide. Bearing with sliding carriage on precision foundation rods. Can be locked in any position or moved toward the grinding wheel.
-Dimensions: approx. 46 × 43 × 28 cm.
Includes:
Accu-Finish Series ONE machine, diamond grinding wheels, grits 260, 600, and 1200, and insert holder.
