Oliva Combination Rolling Mill C130
Product number:
361120
Packaging Unit:
1
From Stock
| Article name: | Rolling mill |
|---|---|
| Brand: | Durston |
| Dimensions height mm: | 540 |
| Dimensions width mm: | 490 |
| External dimension length: | 220 |
| Gross weight grams: | 70.000 |
| Interior dimension Ø mm: | 60 |
| Internal dimensions width mm: | 130 |
| Special feature: | Simple rolling while sitting or standing |
| Unit content: | pc |
Manufacturer Informations
Name: Rudolf Flume Technik GmbH
Street: Hachestr. 66
City: 45127 Essen
Country: DE
Email: info@flume.de
Phone: 0049-201-18990
0 of 0 reviews
Login
No reviews found. Be the first to share your insights.
Product information "Oliva Combination Rolling Mill C130"
The new Olivia™ C130 Rolling Mill, Unique Patent pending 50-1 Gearbox, this revolutionary design makes rolling so much easier, the new easy glide gearbox allows for an even wider range of people to operate a rolling mill with ease.
Standing or sitting this rolling mill is a joy to use for all abilities and of course still offers all the quality you would expect from Durston.

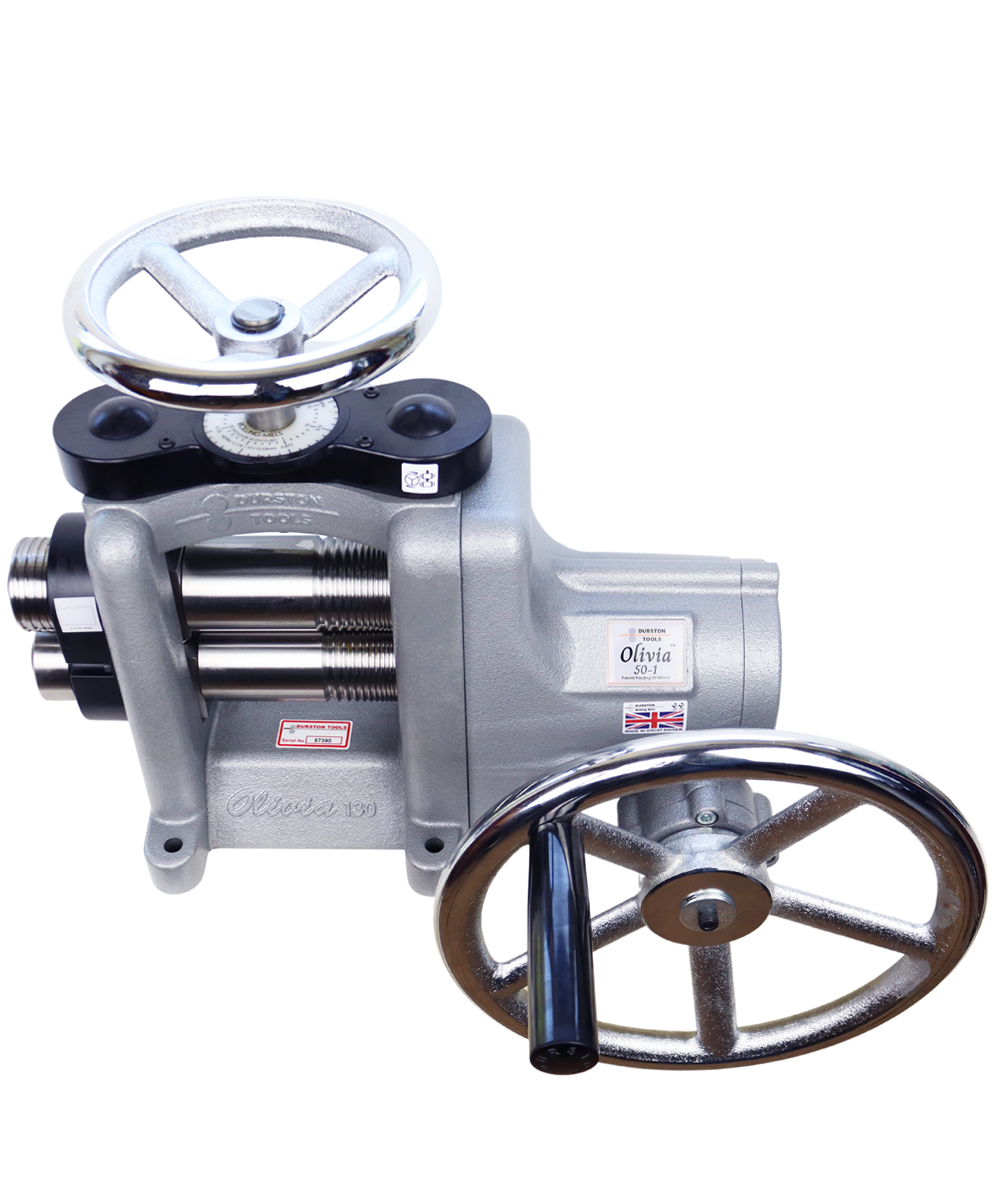

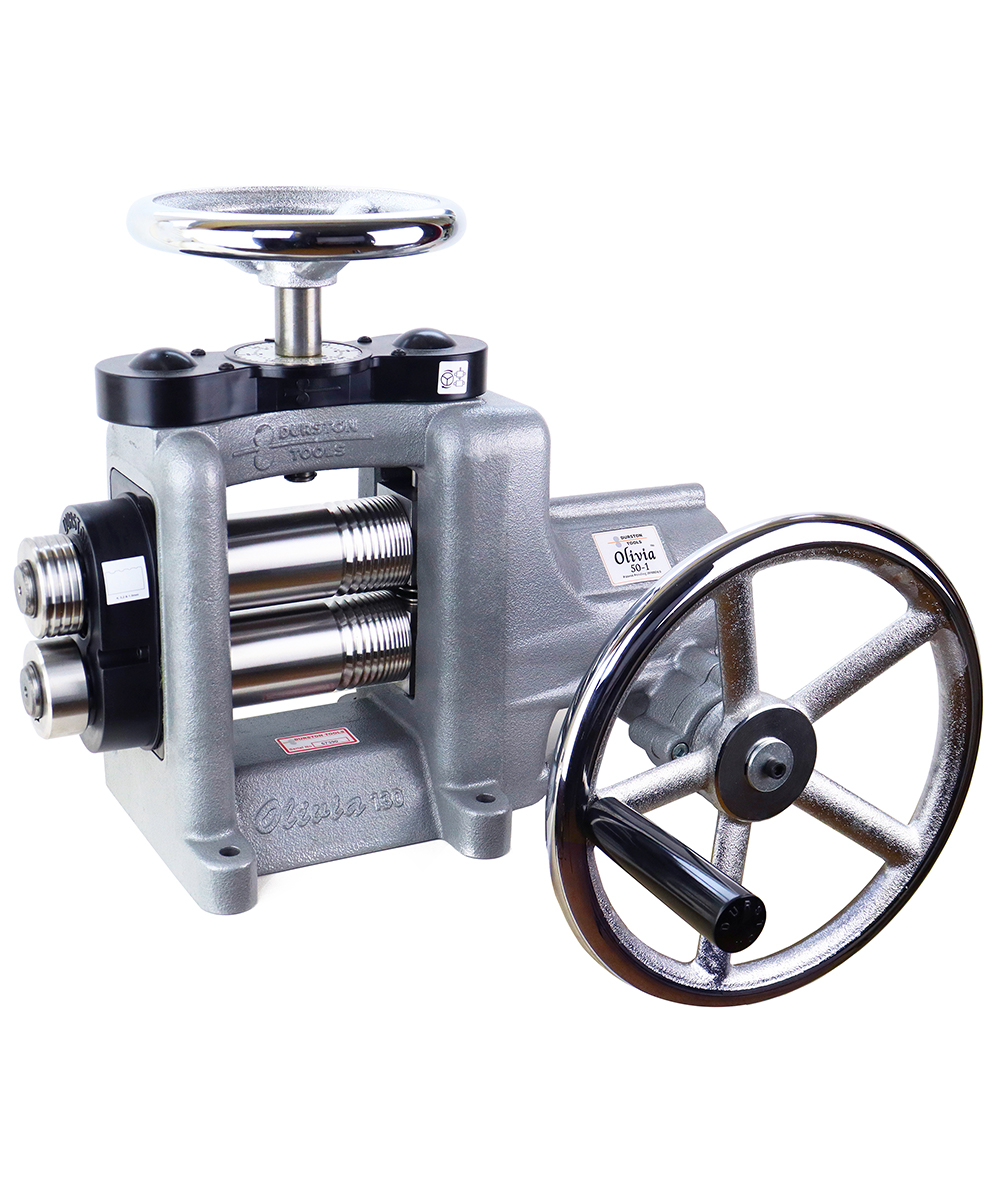

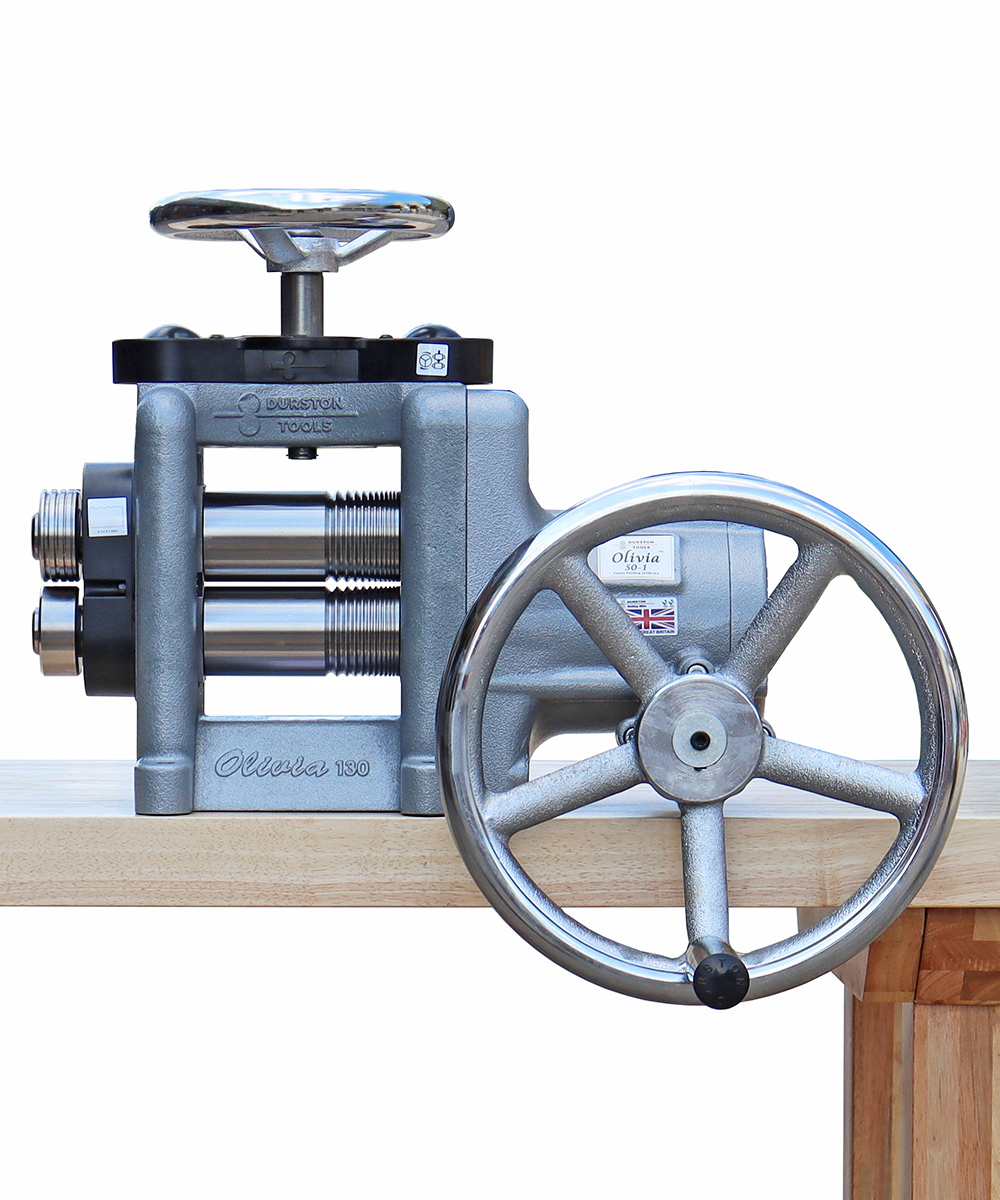

Olivia™ C130 Combination Rolling Mill
• Operated with ease standing or sitting using the front turning wheel
• 50-to-1 reduction gearbox

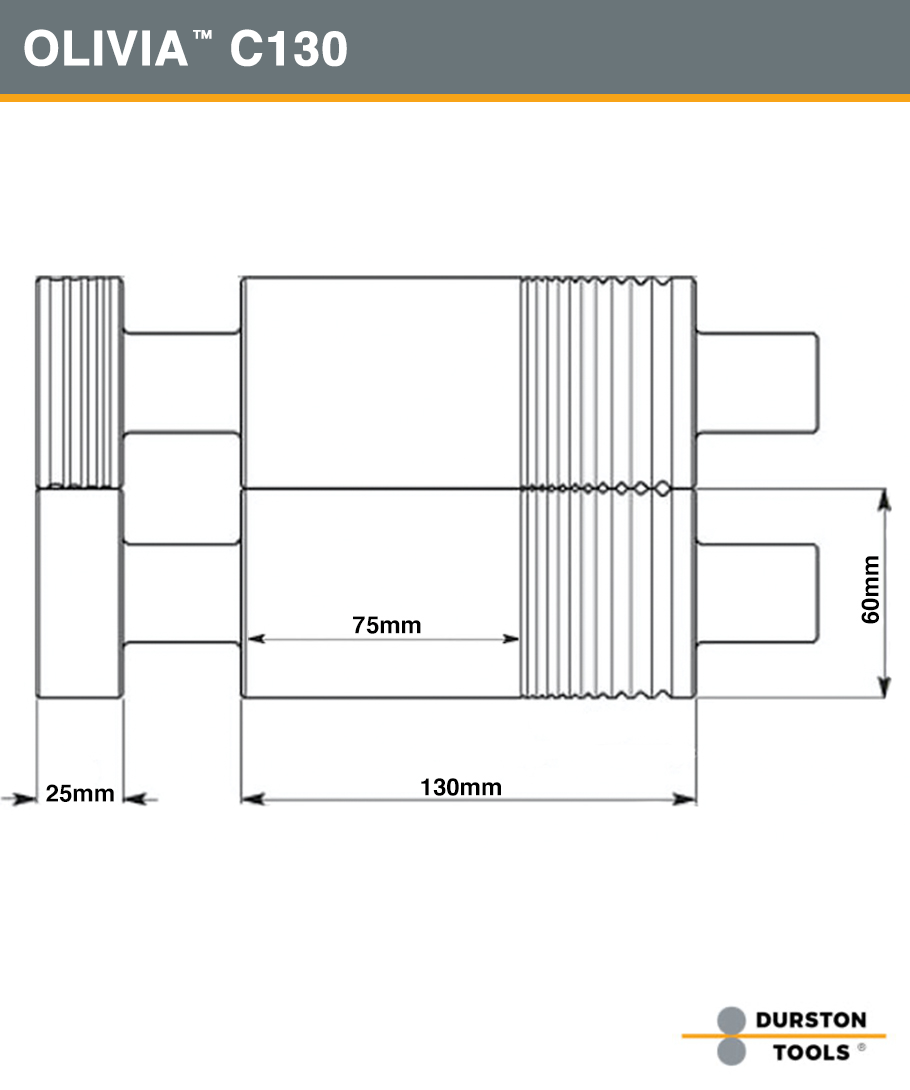

• Side extension with 4 half round grooves (4 to 1.5mm)
• 11 Square wire rolling grooves (Main Roll)
• Flat rolling area 75mm (Main Roll)
• Roll diameter 60mm
• Roll width 130mm ( 75mm / 55mm)
As with all of our Rolling Mills the Olivia™ features a solid single cast body, induction hardened rolls and our classic highly calibrated adjustment wheel ensuring a lifetime of rolling with professional results.
The 50-1 gearbox making it that much easier to Roll out material. – It will take 50 turns of the handwheel to turn the rolls once. The gearbox and handwheel has been designed to work together to make turning so much easier. The specially designed Patent Pending gearbox along with the inertia of the handwheel means you can turn the handwheel up to 10 times as quick as a standard rolling mill with a 4-1 reduction
The Olivia™ C130 is a Combination Rolling Mill designed for flat metals, wire and and half round wire (using the side extension). Durston Rolling Mills are proven to be solid, reliable workhorses in many jewellers’ workshops and factories offering years of service. The Olivia™ C130 is no exception.
• Apart from the obvious 50-1 gearbox making it that much easier to roll out material.
• Now you can sit down using a Rolling Mill. – or stand up. Whatever you prefer.
• Great for people with bad backs, disabilities, or those who find it difficult to move around or stand up for long periods.
• Great for shorter people or for those who find long reach arm movement difficult.
• Increased productivity. Now you can move from the bench to Rolling Mill without standing up and moving across the room.
• More compact. All one unit without the need for additional turning space.
• Now you can place your Rolling Mill anywhere along the bench to suit you. No need to place it at the end.
• Smoother operation for a better-rolled product.
• Great for Roller printing as more tension can be applied.
See the great Olivia story in the category video!
Weight: 70kg
Length: 220mm
Width: 490mm
Height: 540mm
WEIGHT 70 kg
Max. Sheet thickness: 6mm
Roller type: Combination
Roller Diameter: 60mm
Roller Length: 130mm
Side extensions: 4, 3, 2, 1.5mm
Standing or sitting this rolling mill is a joy to use for all abilities and of course still offers all the quality you would expect from Durston.
Olivia™ C130 Combination Rolling Mill
• Operated with ease standing or sitting using the front turning wheel
• 50-to-1 reduction gearbox
• Side extension with 4 half round grooves (4 to 1.5mm)
• 11 Square wire rolling grooves (Main Roll)
• Flat rolling area 75mm (Main Roll)
• Roll diameter 60mm
• Roll width 130mm ( 75mm / 55mm)
As with all of our Rolling Mills the Olivia™ features a solid single cast body, induction hardened rolls and our classic highly calibrated adjustment wheel ensuring a lifetime of rolling with professional results.
The 50-1 gearbox making it that much easier to Roll out material. – It will take 50 turns of the handwheel to turn the rolls once. The gearbox and handwheel has been designed to work together to make turning so much easier. The specially designed Patent Pending gearbox along with the inertia of the handwheel means you can turn the handwheel up to 10 times as quick as a standard rolling mill with a 4-1 reduction
The Olivia™ C130 is a Combination Rolling Mill designed for flat metals, wire and and half round wire (using the side extension). Durston Rolling Mills are proven to be solid, reliable workhorses in many jewellers’ workshops and factories offering years of service. The Olivia™ C130 is no exception.
• Apart from the obvious 50-1 gearbox making it that much easier to roll out material.
• Now you can sit down using a Rolling Mill. – or stand up. Whatever you prefer.
• Great for people with bad backs, disabilities, or those who find it difficult to move around or stand up for long periods.
• Great for shorter people or for those who find long reach arm movement difficult.
• Increased productivity. Now you can move from the bench to Rolling Mill without standing up and moving across the room.
• More compact. All one unit without the need for additional turning space.
• Now you can place your Rolling Mill anywhere along the bench to suit you. No need to place it at the end.
• Smoother operation for a better-rolled product.
• Great for Roller printing as more tension can be applied.
See the great Olivia story in the category video!
Weight: 70kg
Length: 220mm
Width: 490mm
Height: 540mm
WEIGHT 70 kg
Max. Sheet thickness: 6mm
Roller type: Combination
Roller Diameter: 60mm
Roller Length: 130mm
Side extensions: 4, 3, 2, 1.5mm
