- Tools/supplies
Drying unit Elmadry TD120
Product number:
331854
Packaging Unit:
1
Delivery time approx. 4 to 6 weeks
| Article name: | Drying unit |
|---|---|
| Brand: | Elma |
| Dimensions height mm: | 320,00 |
| Dimensions width mm: | 285,00 |
| External dimension length: | 340,00 |
| Gross weight grams: | 6500,00 |
| Manufacturer name: | ElmaDry TD120 |
| Special feature: | 9,0 Litre |
| Temperature °C.: | 70° C |
| Unit length: | mm |
| Watt: | 530 Watt |
Manufacturer Informations
Name: Elma Schmidbauer GmbH
Street: Gottlieb-Daimler-Str. 17
City: 78224 Singen
Country: DE
Email: info@elma-ultrasonic.com
Phone: +49 7731 882-0
0 of 0 reviews
Login
No reviews found. Be the first to share your insights.
Accessoires (optional)
Application:
Elmadry TD120/ 300 und Elmasonic 60-300

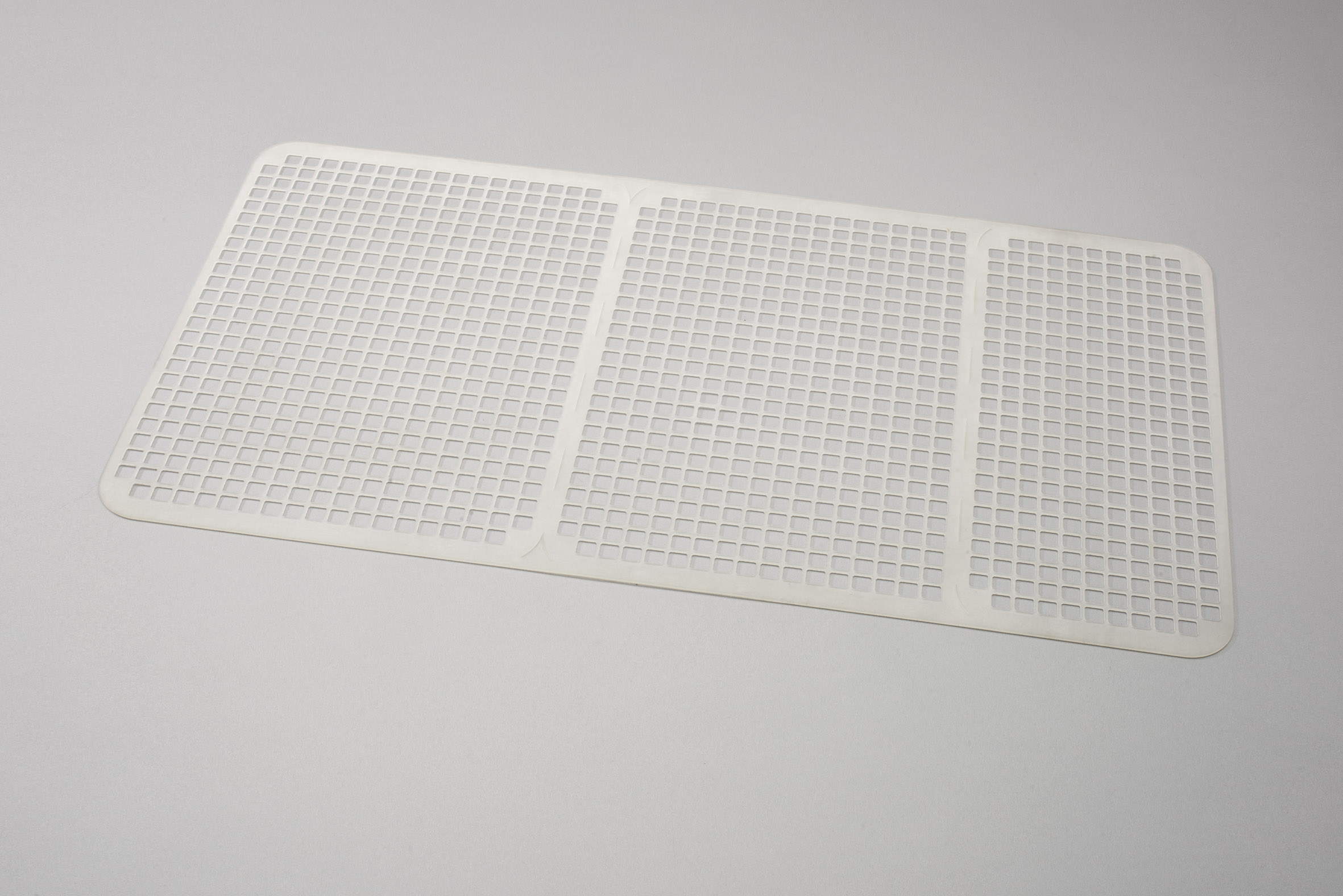

Die Silikonmatte, perforiert, kann als Zubehör auf den Boden gelegt werden, so dass das Trocknungsgut direkt auf den Boden gelegt werden kann (kein Verkratzen).
Für Trockengerät Elmadry TD3´129/300, Referenz 3311854/ 331855 und Elmasonic 60-100
Maße: 450 x 245 x 1,,
Application:
Elma S 30 and P 30 and T 460 to T 470
|
Article name:
Korb aus Edelstahl

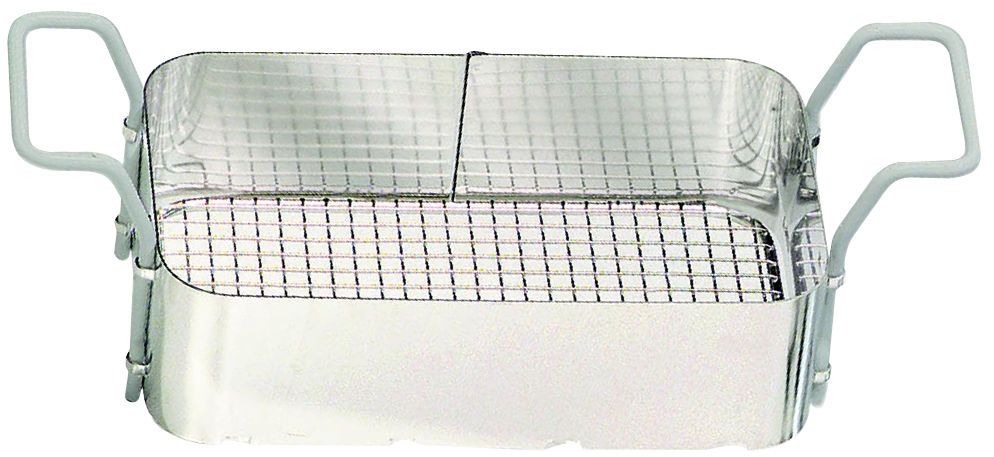

Suspension basket, stainless steel, for Elma S 30 and P 30 and T 460 to T 470
Application:
Elma S 60 and P 60 and T 660
|
Article name:
Korb aus Edelstahl
Suspension basket, stainless steel, for Elma S 60 and P 60 and T 660
Application:
Elma S 100 and T 700
|
Article name:
Korb aus Edelstahl
Insert basket, stainless steel, for Elma S 100 and T 700
Application:
Elma S 120 and P 120 and T 780
|
Article name:
Korb aus Edelstahl
Suspension basket, stainless steel, for Elma S 120 and P 120 and T 780

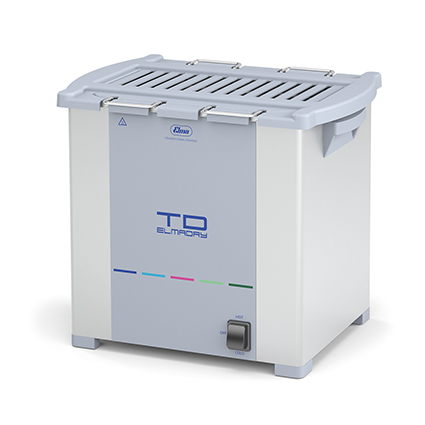

Product information "Drying unit Elmadry TD120"
Safe and efficient drying of parts with warm and cold air
Elmadry TD drying units are designed for use in production, workshop and service. After ultrasonic cleaning, the parts are first rinsed in the basket with municipal water and then conveniently placed in the Elmadry TD drying unit.
Fitted with cold and hot air blower (70 °C), sensitive parts can also be dried gently. In cold air operation, the parts to be dried can also be cooled quickly. The hot air function is activated while the cover is on. The cover has ventilation slots, ensuring that maximum air turbulence is produced and the moist air is conducted to the outside. At the same time, the cover reduces energy consumption.
The dust filter on the underside is replaceable and prevents re-soiling of the cleaned parts by the dust in the room air.
Elmadry TD units are very user-safe thanks to the safety shutdown upon reaching the limit temperature.
Technical datas:
Tank labour capacity (l) 9.0
Heating power (W) 550
Temperature max. (°C) 70
Unit out dimensions W/D/H (mm) 362/285/322
Tank inner dimensions W/D/H (mm) 300/240/200
Max. basket loading (kg) 7.0
Basket inner dimensions W/D/H (mm) 276/126/76
Weight (kg) 6.1
Elmadry TD drying units are designed for use in production, workshop and service. After ultrasonic cleaning, the parts are first rinsed in the basket with municipal water and then conveniently placed in the Elmadry TD drying unit.
Fitted with cold and hot air blower (70 °C), sensitive parts can also be dried gently. In cold air operation, the parts to be dried can also be cooled quickly. The hot air function is activated while the cover is on. The cover has ventilation slots, ensuring that maximum air turbulence is produced and the moist air is conducted to the outside. At the same time, the cover reduces energy consumption.
The dust filter on the underside is replaceable and prevents re-soiling of the cleaned parts by the dust in the room air.
Elmadry TD units are very user-safe thanks to the safety shutdown upon reaching the limit temperature.
Technical datas:
Tank labour capacity (l) 9.0
Heating power (W) 550
Temperature max. (°C) 70
Unit out dimensions W/D/H (mm) 362/285/322
Tank inner dimensions W/D/H (mm) 300/240/200
Max. basket loading (kg) 7.0
Basket inner dimensions W/D/H (mm) 276/126/76
Weight (kg) 6.1
