Drilling, polishing, grinding
Ultrasonic unit EM D30 with drain and heating
Product number:
322869
Packaging Unit:
1
From Stock
Downloads
| Application: | with drain |
|---|---|
| Article name: | Emag EM D-30 with drain |
| Brand: | Emag |
| Content: | 3,00 |
| Dimensions height mm: | 225 |
| Dimensions width mm: | 165 |
| External dimension length: | 300 |
| Gross weight grams: | 3.200 |
| Inside length mm: | 238 |
| Internal dimensions depth mm: | 100 |
| Internal dimensions width mm: | 138 |
| Special feature: | with heater |
| Unit content: | litres |
| Volt/Hz: | 230 / 50 |
| Watt: | 160-320 |
Manufacturer Informations
Name: EMAG AG
Street: Gerauer Str. 34
City: 64546 Mörfelden
Country: DE
Email: info@emag-germany.de
Phone: +49 (0) 6105 406 700
0 of 0 reviews
Login
No reviews found. Be the first to share your insights.
Accessoires (optional)
The round basket for all common ultrasonic cleaning devices allows you to safely and effortlessly clean small parts, such as jewellery, jewellery parts, rivets, nuts, and coins. The small shape and the long holders provide hold for the basket control at all times and eliminate the problem of parts slipping through the mesh. - Dimensions: 5 x 5 cm (H x W) - Material: stainless steel - With metal holder for optimum grip on the device
Application:
Emag EM-D30
Special stainless steel cover with 2 glass beakers (incl. cover and rubber ring) for Emmi 30 for gentle cleaning and easy addition and removal of smaller objects, such as springs, nozzles, screws, needles, etc. Allows you to work simultaneously with different liquids.
Includes 2 glasses (600ml each).
For device: Emag EM D-30, SKU 322869
Dimensions Ø mm:
16.000
Useful for cleaning and securely holding small parts in cleaning machines such as ultrasonic devices.
Size: approx 16mm
Screwable capsule
Weight approx 20g
Dimensions Ø mm:
25.000
Useful to hold small parts in cleaning machine.
Weight: ca. 20gms/ pc.
Article name:
Ultrasonic cleaner Tickopur RW 77
|
Content:
1000
Cleaning concentrate for disassembled movements, precision mechanical parts, jewellery, metal (no zinc or light alloy), glass, ceramics, and plastics. Special cleaner with ammonia, phosphate-free.
Water mixing ratio 1:20.
Article name:
Ultrasonic cleaner Tickopur RW 77
|
Content:
5000
Cleaning concentrate for disassembled movements, precision mechanical parts, jewellery, metal (no zinc or light alloy), glass, ceramics, and plastics. Special cleaner with ammonia, phosphate-free.
Water mixing ratio 1:20.
Cleaning concentrate for ultrasonic cleaning of jewellery, metal bands, and watch cases as well as disassembled clock movements or cleaning small movements in watch cleaning machines. This cleaner quickly and gently removes gummy oils and fats. Brass, Red gold platings and gold alloys are brightened. Special cleaner with ammonia.
Water mixing ratio 1:9.
Cleaning concentrate for jewellery and watch housings. Special cleaner for removing grease and polishing residues. Best cleaning effect at 50 to 60 °C. Mixing ratio with water 1:10 to 1:20.
With a mixing ratio of 1:20, it is also suitable for cleaning jewellery with pearls, corals and "soft" stones.
Cleaning concentrate for glasses, frames, optical glasses, plastics. Mixing ratio with water 1:20.
Cleaning concentrate for jewellery and watch housings. Special cleaner for removing grease and polishing residues. Best cleaning effect at 50 to 60 °C. Mixing ratio with water 1:10 to 1:20.
With a mixing ratio of 1:20, it is also suitable for cleaning jewellery with pearls, corals and "soft" stones.
Article name:
Ultrasonic cleaner Tickopur J 80 U
|
Content:
1000
Ready to use cleaner for jewellery and copper, bronze, and brass parts. With lightly de-oxidising effect.
CAUTION: Do not apply directly in the ultrasonic tank. Use only in glass.
Article name:
Ultrasonic cleaner Tickopur J 80 U
|
Content:
5000
Ready to use cleaner for jewellery and copper, bronze, and brass parts. With lightly de-oxidising effect.
CAUTION: Do not apply directly in the ultrasonic tank. Use only in glass.
Content:
1000
Powder, mildly alkaline, silicate free, for gentle removal of polishing pastes and grinding residues. Suitable for non-ferrous and precious metals.
Bath temperature approx. 50-90 °C
Cleaning time approx. 2-5 minutes.
Mixing ratio 40 g per 1 litre.
Cleaning concentrate for gold jewellery with or without stones, including soft and amorphous stones (except corals). Cleans and brightens worn jewellery and display articles.
Water mixing ratio 1:20.
Content:
1.00
Cleaning concentrate for gold and silver jewellery and precious stones, also suitable for soft and amorphous stones. Returns lustre to jewellery and the original brilliance to gemstones.
Water mixing ratio 1:20.
Content:
5000
Cleaning concentrate for gold and silver jewellery and precious stones, also suitable for soft and amorphous stones. Returns lustre to jewellery and the original brilliance to gemstones. Water mixing ratio 1:20.

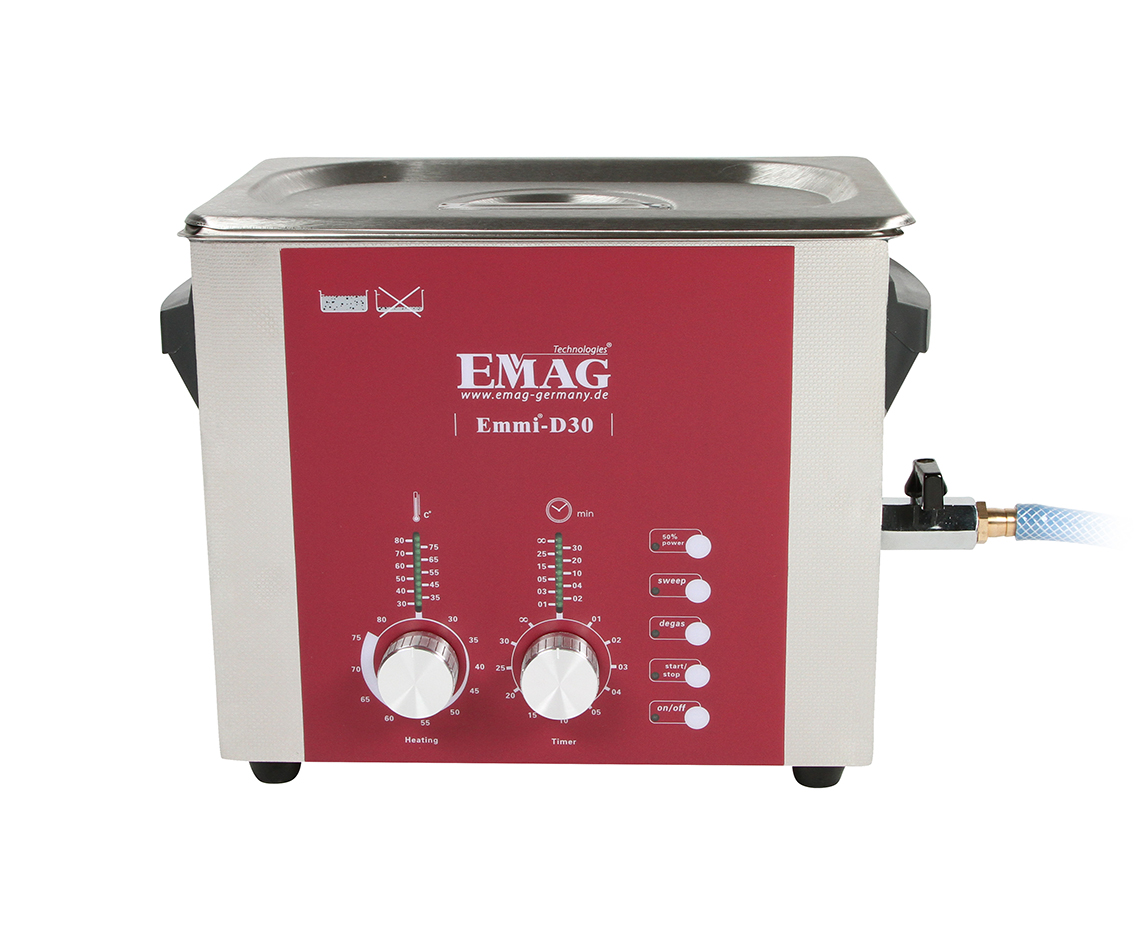

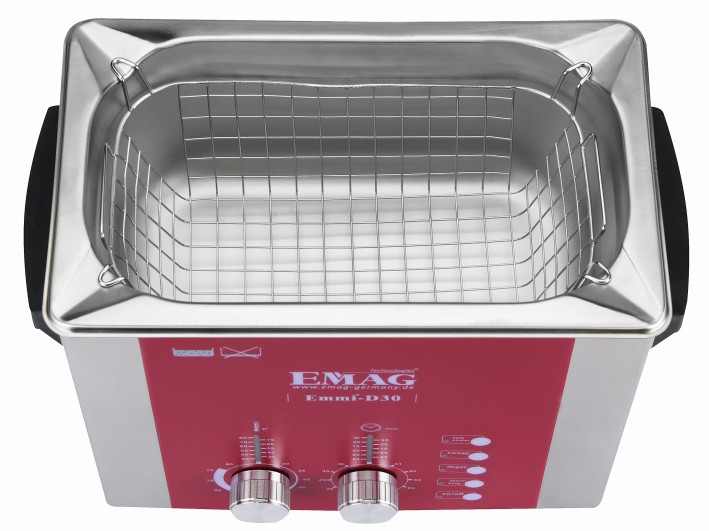

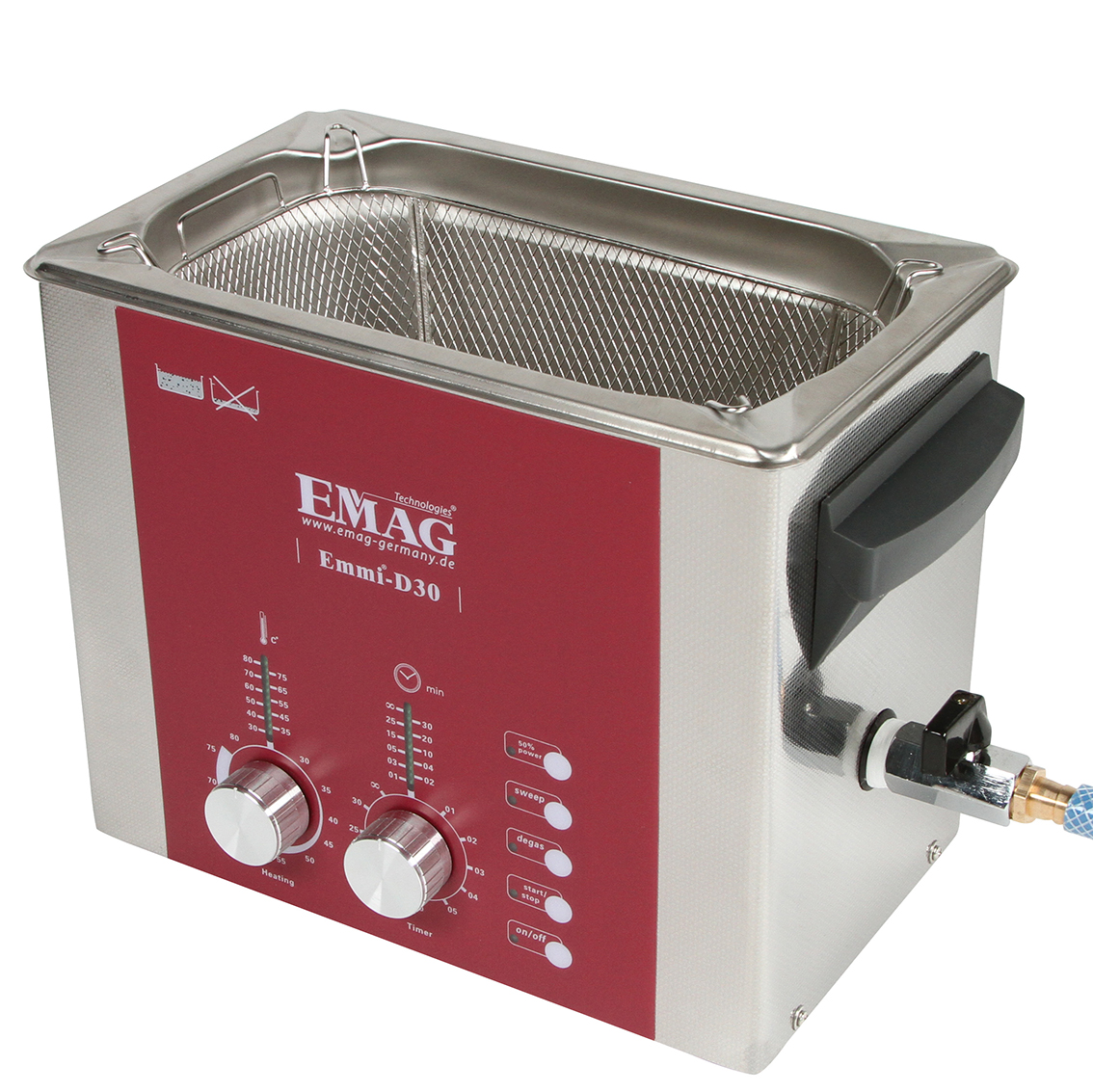

Product information "Ultrasonic unit EM D30 with drain and heating"
The ultrasonic cleaner Emmi D30 in the digital series by EMAG provides lasting, efficient quality and performance in industrial quality, ideally suited for any workshop.
Universal device with stainless steel oscillation tray and stainless steel housing.
Timer 1-60 min., continuous operation, drain cock, and heating.
The stainless steel tray is constructed in industrial quality and has been designed and manufactured specifically for this unit (no Gastro container). The tray has the perfect balance: Walls that are not thick to prevent proper transmission of the ultrasonic vibrations, and yet providing optimum strength and stability.
Dimensions:
- Device exterior (L x W x H): 265 x 165 x 225 mm
- Tray inside (L x W x H): 238 x 138 x 100 mm
- Basket inside (L x W x H): 220 x 120 x 85 mm
Capacity:
Tray capacity: 3.0 litres
Filling volume: 2.4 litres
Features:
- Oscillation tray: stainless steel 1.4301
- Case: stainless steel 1.4301
- Ingress protection: IP 32
- Drain cock: yes
- Timer: 1-60 min / continuous operation
- Heating: 20-80 °C
- Power control: 50% / 100%
- Sweep technology: yes (increase of regular ultrasonic power for particularly heavy contamination)
- Degas function: yes (degassing of the water supply (e.g., oxygen) prior to start-up results in optimum ultrasonic power)
- By activating the sweep function, the device achieves a peak power of 320 watts.
Technical Specifications:
- Oscillating system: 2 PZT broad beam oscillating system
- HF generator: overload protected, constant power
- Mode of operation: simple half-wave
- Operating frequency: approx. 45 kHz
- SweepTec: 50-60% power increase
- Ultrasonic power: 160 watts
- Heating power: 120 watts
- Power supply voltage: 50/60 Hz
- Power supply: 220 - 240 V
- Total weight: approx. 3.2 kg
Includes:
- Ultrasonic unit EM D-30
- 1 cover for EM D-30

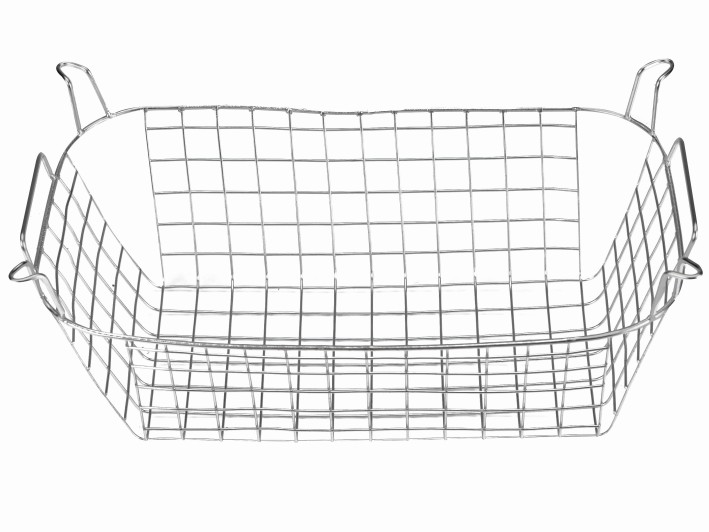

- 1 basket for EM D-30
German technology and manufacturing under certified quality control.
