Drilling, polishing, grinding
Ultrasonic unit EM D130 with drain and heating
Product number:
322875
Packaging Unit:
1
Delivery time approx. 1 week
Downloads
| Application: | with drain |
|---|---|
| Article name: | Emag EM D-130 with drain |
| Brand: | Emag |
| Content: | 13,00 |
| Dimensions height mm: | 355 |
| Dimensions width mm: | 270 |
| External dimension length: | 330 |
| Gross weight grams: | 7.200 |
| Inside length mm: | 302 |
| Internal dimensions depth mm: | 200 |
| Internal dimensions width mm: | 239 |
| Special feature: | with heater |
| Unit content: | litres |
| Volt/Hz: | 230 / 50 |
| Watt: | 400 |
Manufacturer Informations
Name: EMAG AG
Street: Gerauer Str. 34
City: 64546 Mörfelden
Country: DE
Email: info@emag-germany.de
Phone: +49 (0) 6105 406 700
0 of 0 reviews
Login
No reviews found. Be the first to share your insights.
Accessoires (optional)
The round basket for all common ultrasonic cleaning devices allows you to safely and effortlessly clean small parts, such as jewellery, jewellery parts, rivets, nuts, and coins. The small shape and the long holders provide hold for the basket control at all times and eliminate the problem of parts slipping through the mesh. - Dimensions: 5 x 5 cm (H x W) - Material: stainless steel - With metal holder for optimum grip on the device

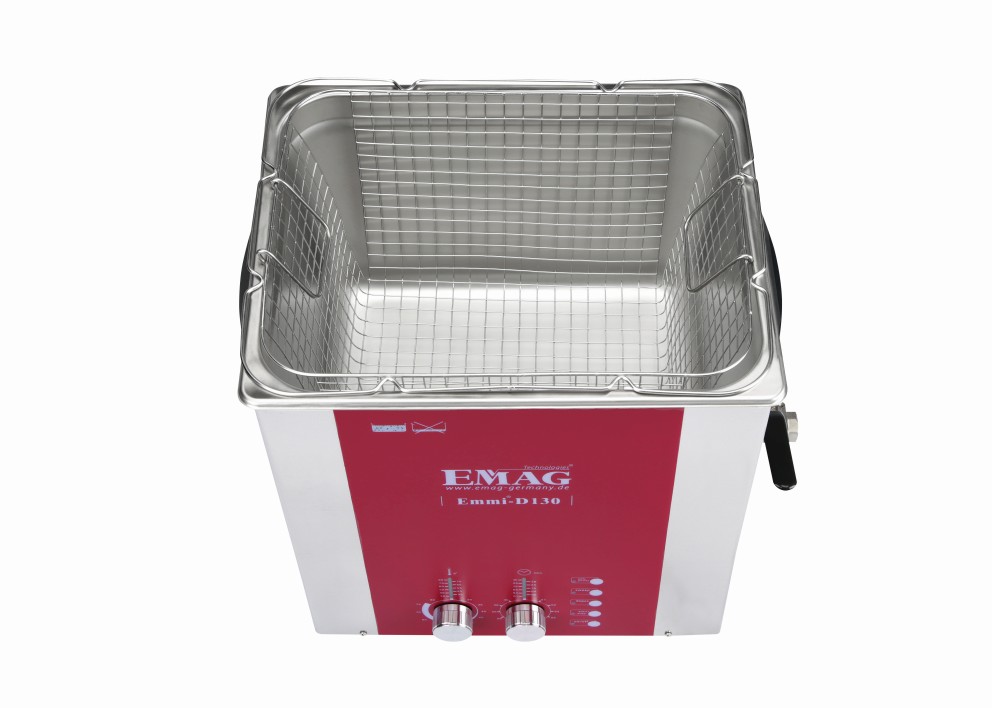

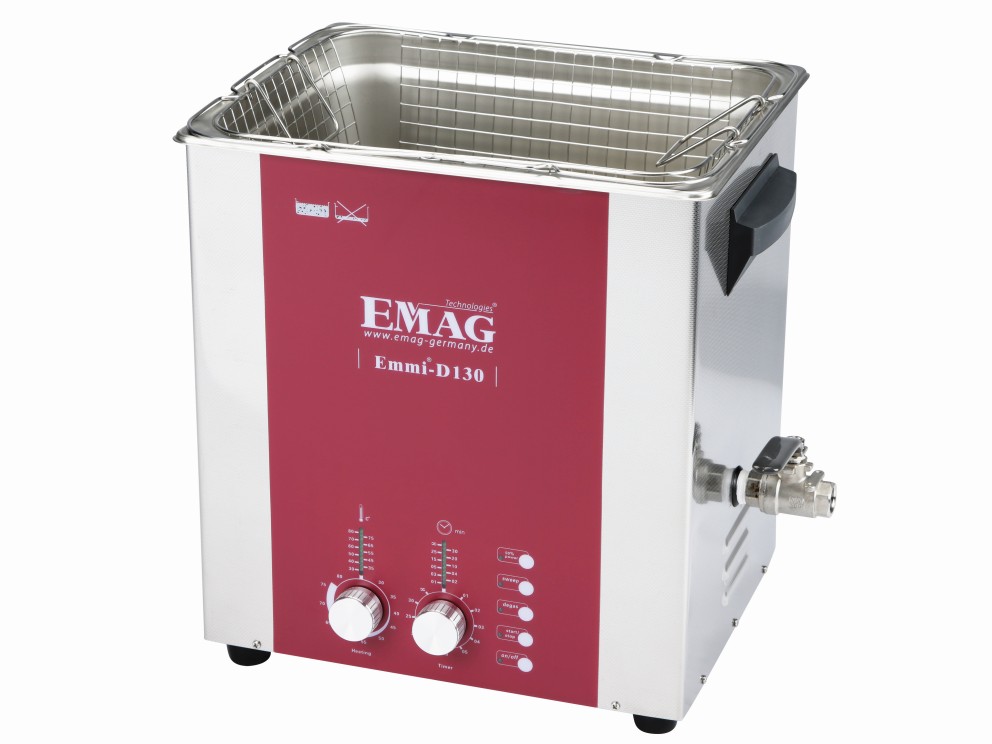

Product information "Ultrasonic unit EM D130 with drain and heating"
The ultrasonic cleaner Emmi D130 in the digital series by EMAG provides lasting, efficient quality and performance, particularly suited for larger workshops, laboratories, and industrial applications.
Universal device with stainless steel oscillation tray and stainless steel housing.
Timer 1-60 min., continuous operation, drain cock, and heating.
Dimensions:
- Device exterior (L x W x H): 330 x 270 x 355 mm
- Tray inside (L x W x H): 302 x 239 x 200 mm
- Basket inside (L x W x H): 280 x 225 x 180 mm
Capacity:
Tray capacity: 13.0 litres
Filling volume: 12.1 litres
Features:
- Oscillation tray: stainless steel 1.4301
- Case: stainless steel 1.4301
- Ingress protection: IP 32
- Drain cock: yes
- Timer: 1-60 min / continuous operation
- Heating: 20-80 °C
- Power control: 50% / 100%
- Sweep technology: yes (increase of regular ultrasonic power for particularly heavy contamination)
- Degas function: yes (degassing of the water supply (e.g., oxygen) prior to start-up results in optimum ultrasonic power)
Technical Specifications:
- Oscillating system: 5 PZT broad beam oscillating system
- HF generator: overload protected, constant power
- Mode of operation: simple half-wave
- Operating frequency: approx. 45 kHz
- SweepTec: 50-60% power increase
- Ultrasonic power: max. 400 watts
- Heating power: 200 watts
- Power supply voltage: 50/60 Hz
- Power supply: 220 - 240 V
- Total weight: approx. 6.5 kg
Includes:
- Ultrasonic unit EM D-130
- 1 cover for EM D-130
- 1 basket for EM D-130
German technology and manufacturing under certified quality control.
