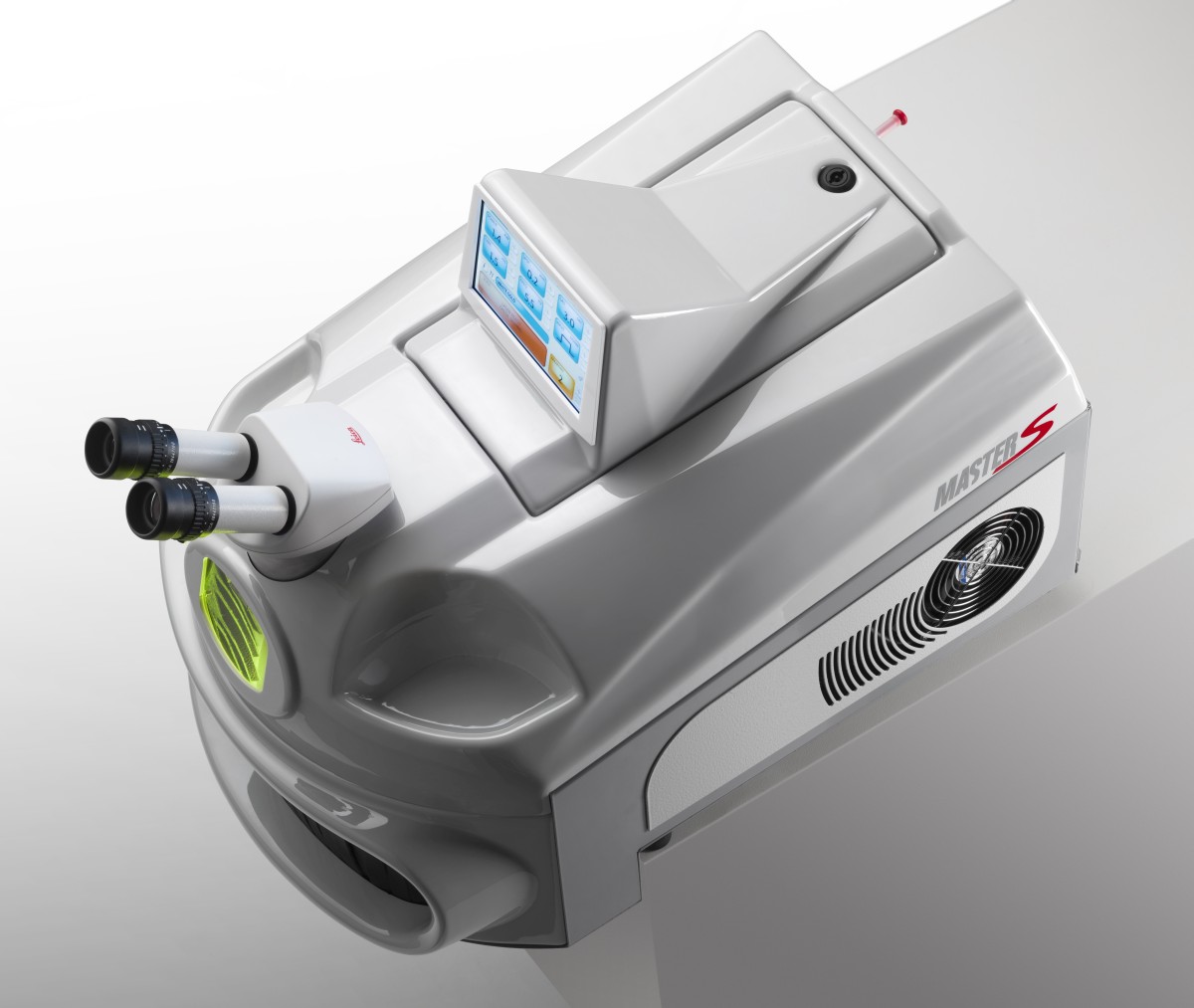

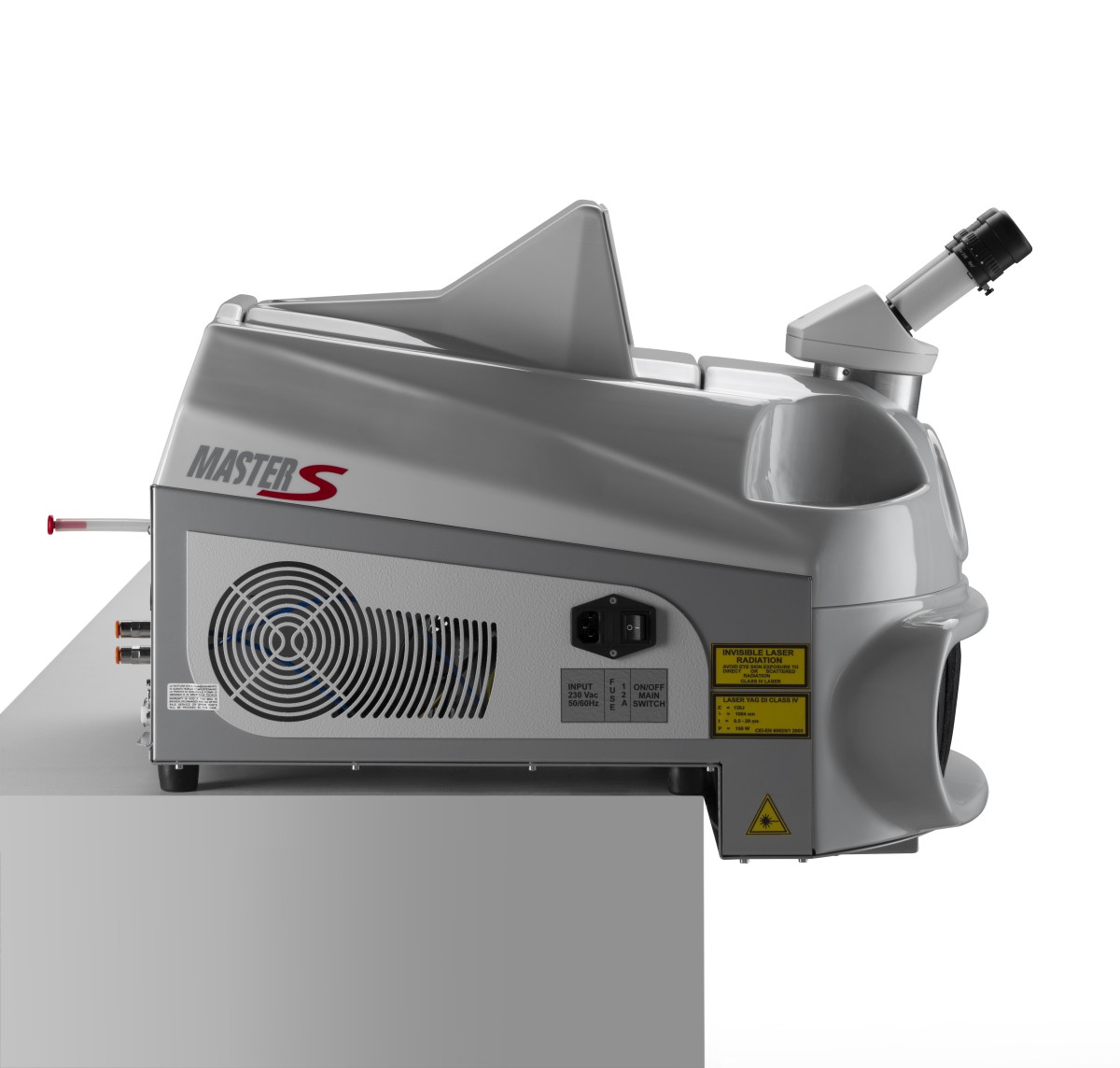

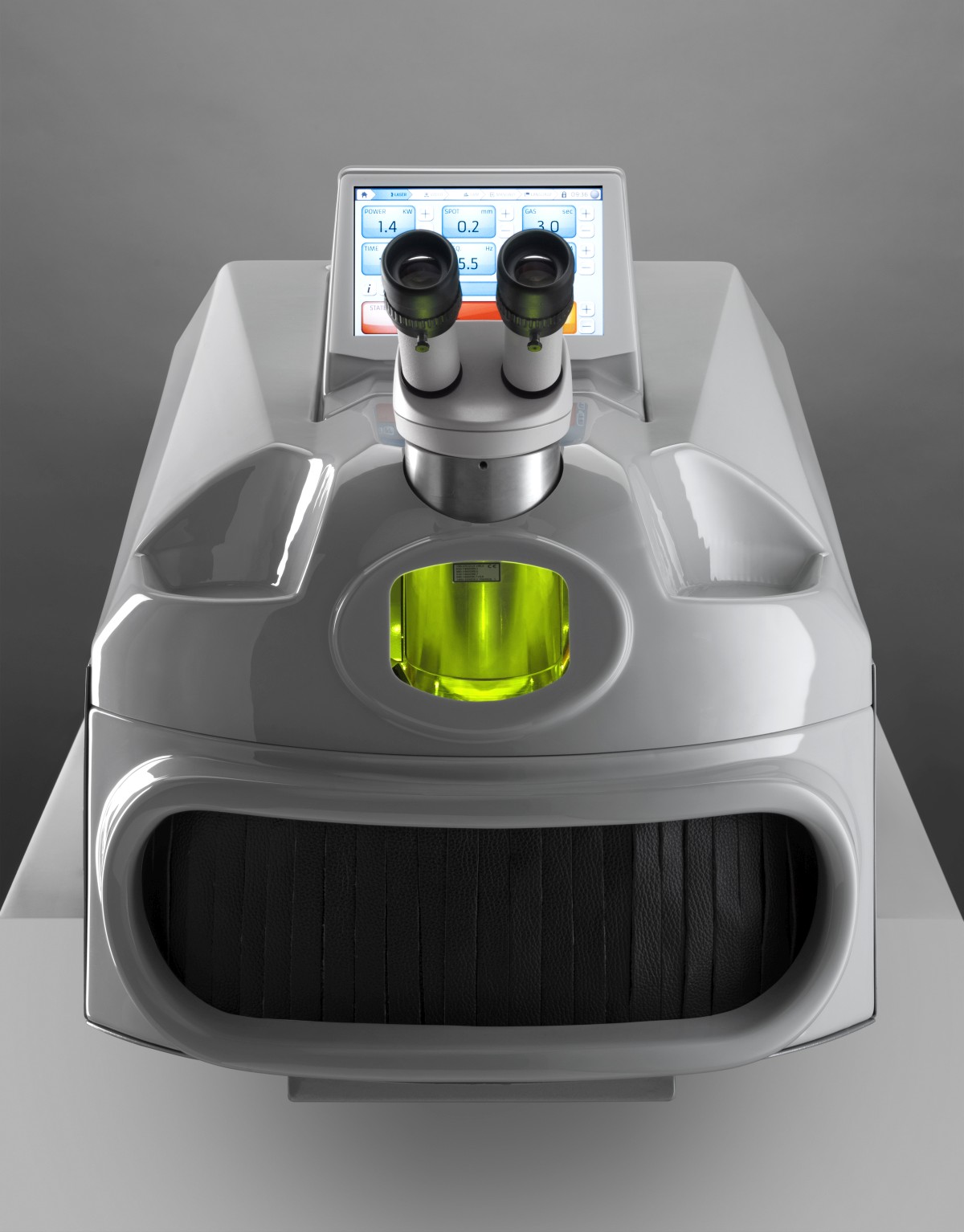

Compact welding laser Master S 130 with microscope and SMOOTH SPOT
Product number:
341122
Packaging Unit:
1
Extra order! Delivery time approx. 2 weeks, return is not possible.
| Article name: | Welding laser Master S 130 |
|---|---|
| Brand: | Mega/ Master |
| Dimensions height mm: | 500,00 |
| Dimensions width mm: | 450,00 |
| External dimension length: | 700,00 |
| Gross weight grams: | 45.000 |
| Magnification: | Leica 10x |
| Performance: | 6,5 kW |
| Special feature: | with SMOOTH SPOT |
| Volt/Hz: | 230 / 50 |
| Watt: | 100 W |
0 of 0 reviews
Login
No reviews found. Be the first to share your insights.
Replacements
Substitutes
Property:
mit Smooth-Spot
MERKMALE:
• Innovative Smooth-Spot-Technologie
• 7" Farb-Touchscreen-Display
• 100 Speicherzellen mit Namensvergabe
• Stereomikroskop 10x von Leica
• LCD-Verschluss mit hoher Helligkeit
• Interner Joystick zur Schweißkammer
• Leistungsstarke LED-Leuchten
• Geringes Gewicht und geringe Abmessungen
• Integrierte Kamera
• Datenlogger-Webschnittstelle
• Kein Nachfüllen von Wasser erforderlich
• Ethernal-Anschluss RJ 45 enthalten
Master 4.0 PLUS ist eine Laserschweißmaschine die speziell für Goldschmiede und Dentallabore entwickelt und konzipiert wurde.
Das neue Design mit integrierten Armlehnen und die neueste Generation des rundum verstärkten Gehäuses erhöhen den Komfort und die Benutzerfreundlichkeit, zusammen mit dem kapazitiven 7"-Display und dem Joystick im Inneren der Schweißkammer.
• Nachfolger des Modells Master S Spot, Referenz 341122
Weitere Daten:
• Gewicht: ca. 30kg
• WiFi
• Integrierte Kamera
• USB-Anschluss
• 7" Touchscreen
• Impulsspitzenleistung: 6,5 kW
• Mittlere Leistung: 100 W
• Impulsenergie: 165 Joule
• Pulsfrequenz: Einzelpuls 0,5 - 30 Hz
• Impulsdauer: 0,1-25 ms
• Strahldurchmesser: 0,2-2,0 mm
• Maschinengröße: Länge 71,5cm x Breite 55,2cm x Höhe 51,6cm
• Programmspeicher: 100 Programmsätze speicherbar
• Gehäuse: Kunststoff
• 230V / 50 Hz
• Version mit innovativer Smooth-Spot-Technologie: Referenz 363409
*** Hinweise im Zusammenhang mit dem Betrieb von Laser-Schweißgeräten bekommen Sie von uns nach der Fachberatung durch unseren Außendienst ausgehändigt ***
Product information "Compact welding laser Master S 130 with microscope and SMOOTH SPOT"
The innovative SMOOTH SPOT technology has arrived!
The first feature that distinguishes the new Made in Italy by Elettrolaser laser beam is surely the accuracy and the real shot diameter achieved. The other machines currently on the market miss the diameter shown on the display. This is mainly due to the necessity to get a soft shot but at the expense of precision. Therefore, it is easy to see then that values as 0.2 or 0.3mm, actually when measured are much larger.
Another benefit offered by our SMOOTH SPOT is definitely the energy distribution uniformity and consequent homogeneity of laser welding.
The result is a uniform and well-distributed shot. Therefore, it is easy to guess how a shot with these features gives you the following benefits:
- Improved material spreading
- Uniform sealing welding
- Correct spot size
- Improved surface finishing
- No problems with porosity and holes
One of the most recent developments of ElettroLaser, the Master S inherits all the product innovations of its predecessors.
It was developed mainly to satisfy the needs of combining high working power with long lamp life.
Thanks to the new lamp and innovative technology that offers digital setting of the powers in play, ElettroLaser now produces the best laser on the market with very low impact in terms of maintenance.
A large welding chamber, integrated webcam with display of the operations directly on the 7” LCD display, WI-FI connection for entry of the machine in a network, or parametrization of the machine by remote control complete this picture of an innovative welding laser.
Main features
7” color touch screen display
One hundred programmable memories
Leica 10x stereomicroscope
LCD shutter with high luminosity
Joystick inside the welding chamber
LED illumination
Long-lasting lamp
Integrated videocam
Wi-Fi connection
36 month warranty
Applications
Ideal for silversmiths
Welding precious metals like platinum, titanium, gold, silver, palladium
Repair of antique jewelry
Repair of settings without removing the stones
Repair of watches, eyewear and other minutia
Welding of elements using filler material without the need of additional cleaning
MAXIMUM
EFFICIENCY
AND LONG LIFE
The long-lasting lamp is guaranteed a high number of flashes at an intensity of 130 J.
This makes it ideal also for silver welders.
PULSE FREQUENCY: 0,5 to 30 Hz
SPOT DIAMETER: 0,2 to 2,0 mm
SPOT SETTING: Motorized, 30 positions
WAVE PROGRAMS: Pulse Shaping 6 preset
MEMORIES CELL STORED: 100
INTERNAL CHAMBER CONTROL: Joystick
EXTERNAL CONTROL: 7'' Color Touch Screen
INPUT POWER: 230 V AC, 50/60 Hz
AMPERE: 10 A
TYPE: Desktop
The first feature that distinguishes the new Made in Italy by Elettrolaser laser beam is surely the accuracy and the real shot diameter achieved. The other machines currently on the market miss the diameter shown on the display. This is mainly due to the necessity to get a soft shot but at the expense of precision. Therefore, it is easy to see then that values as 0.2 or 0.3mm, actually when measured are much larger.
Another benefit offered by our SMOOTH SPOT is definitely the energy distribution uniformity and consequent homogeneity of laser welding.
The result is a uniform and well-distributed shot. Therefore, it is easy to guess how a shot with these features gives you the following benefits:
- Improved material spreading
- Uniform sealing welding
- Correct spot size
- Improved surface finishing
- No problems with porosity and holes
One of the most recent developments of ElettroLaser, the Master S inherits all the product innovations of its predecessors.
It was developed mainly to satisfy the needs of combining high working power with long lamp life.
Thanks to the new lamp and innovative technology that offers digital setting of the powers in play, ElettroLaser now produces the best laser on the market with very low impact in terms of maintenance.
A large welding chamber, integrated webcam with display of the operations directly on the 7” LCD display, WI-FI connection for entry of the machine in a network, or parametrization of the machine by remote control complete this picture of an innovative welding laser.
Main features
7” color touch screen display
One hundred programmable memories
Leica 10x stereomicroscope
LCD shutter with high luminosity
Joystick inside the welding chamber
LED illumination
Long-lasting lamp
Integrated videocam
Wi-Fi connection
36 month warranty
Applications
Ideal for silversmiths
Welding precious metals like platinum, titanium, gold, silver, palladium
Repair of antique jewelry
Repair of settings without removing the stones
Repair of watches, eyewear and other minutia
Welding of elements using filler material without the need of additional cleaning
MAXIMUM
EFFICIENCY
AND LONG LIFE
The long-lasting lamp is guaranteed a high number of flashes at an intensity of 130 J.
This makes it ideal also for silver welders.
PULSE FREQUENCY: 0,5 to 30 Hz
SPOT DIAMETER: 0,2 to 2,0 mm
SPOT SETTING: Motorized, 30 positions
WAVE PROGRAMS: Pulse Shaping 6 preset
MEMORIES CELL STORED: 100
INTERNAL CHAMBER CONTROL: Joystick
EXTERNAL CONTROL: 7'' Color Touch Screen
INPUT POWER: 230 V AC, 50/60 Hz
AMPERE: 10 A
TYPE: Desktop
