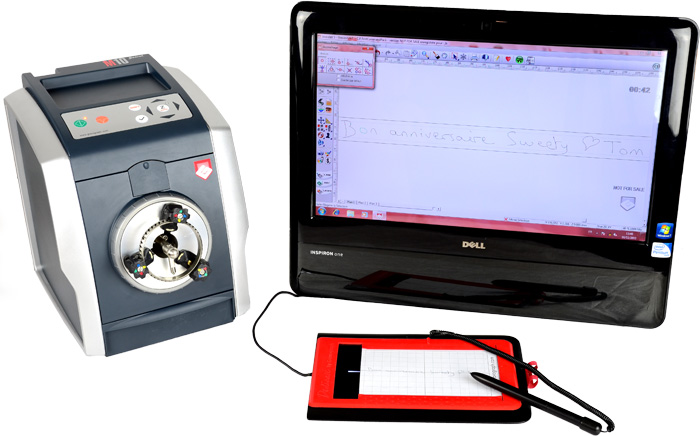

Engraving machine M10 Jewel with software
Product number:
250057
Packaging Unit:
1
Extra order! Delivery time on request, return is not possible.
| Application: | Inside and outside - rings + bracelets |
|---|---|
| Article name: | Engraving machine M10 Jewel |
| Brand: | Gravograph |
| Dimensions height mm: | 295 |
| Dimensions width mm: | 225 |
| External dimension length: | 290 |
| Gross weight grams: | 9.020 |
| Special feature: | M 10 Jewel |
Manufacturer Informations
Name: GravoTech GmbH
Street: Am Gansacker 3a
City: 79224 Umkirch b. Freiburg
Country: DE
Email: info.germany@gravotech.com
Phone: +49766550070
0 of 0 reviews
Login
No reviews found. Be the first to share your insights.
Replacements
Basic writing functions: Features: Standard text functions Pre-designed typefaces Supports True Type fonts Zoom, print, template and raster functions Extensive symbol library User-friendly tool rail management by colours Engraving simulation (WYSIWYRE) Auxiliary functions and wizards Import export of files
Product information "Engraving machine M10 Jewel with software"

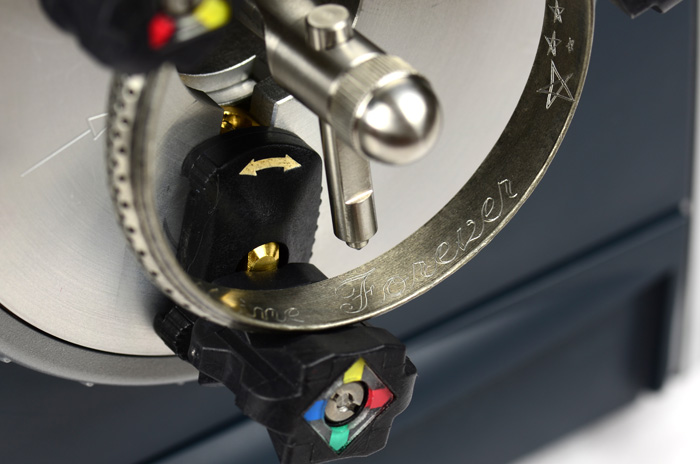

Engraves fonts and symbols on insides and outsides of rings and bracelets.
The Engraving Wizard of the Gravostyle 7 software (up to 220 fonts available) will guide you through the engraving process step by step to help you avoid engraving mistakes and always receive excellent engraving results. Animations show graphically how to correctly position your text or logos on the object.
With the M10 Jewel, you can achieve outstanding engraving quality without any prior knowledge of engravings. The M10 Jewel is fully automated and does not need to be adjusted manually. Connect the machine, insert the object that you want to personalise, and the M10 Jewel does the rest.
Engravable material sizes:
Rings: 1.5 to 8 mm width; dia. 12.5 -25 mm
Bracelets: 3 to 20 mm width; dia. 45 -74 mm

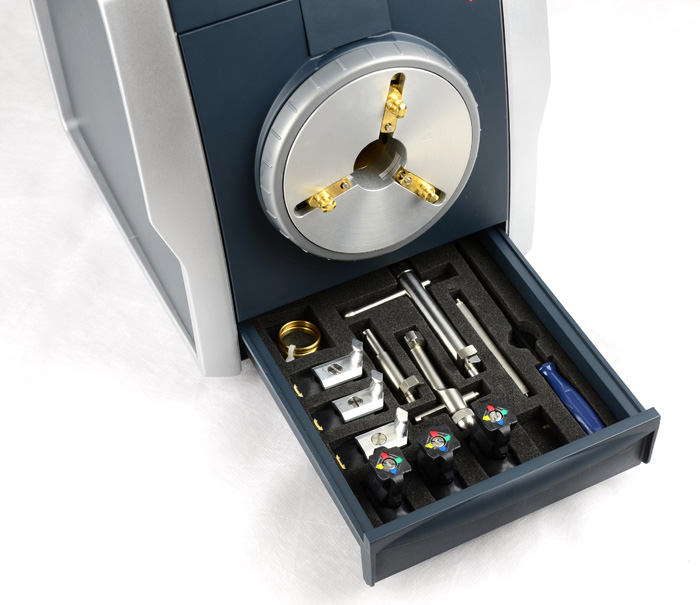

Includes:
Engraving machine M10
Software Gravostyle 7
USB cable

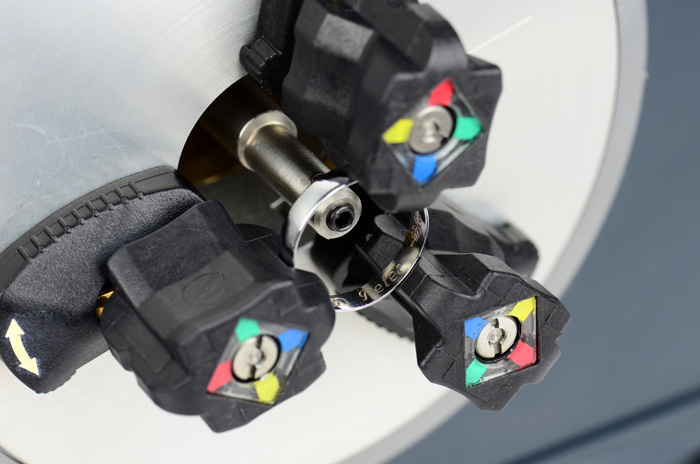

3 clamping jaws for rings/bracelets for inside engraving
Diamond with holder for inside ring engraving
Diamond with holder for inside bracelet engraving
3 clamping jaws for rings/bracelets for outside engraving
Diamond holder for outside engraving
Diamond, long, for outside ring engraving
Diamond for outside bracelet engraving
Allen key 2 mm
Instruction manual on CD
AC adaptor 24V
Requires PC with the following system requirements::
Processor: Dual Core 2.4 GHz or better
RAM: 1GB or more
Hard drive: 20 GB or more
Windows XP with SP2 /Vista Home / 7
Connection 230 V 50 Hz.
Facsimile engravings option.
The Engraving Wizard of the Gravostyle 7 software (up to 220 fonts available) will guide you through the engraving process step by step to help you avoid engraving mistakes and always receive excellent engraving results. Animations show graphically how to correctly position your text or logos on the object.
With the M10 Jewel, you can achieve outstanding engraving quality without any prior knowledge of engravings. The M10 Jewel is fully automated and does not need to be adjusted manually. Connect the machine, insert the object that you want to personalise, and the M10 Jewel does the rest.
Engravable material sizes:
Rings: 1.5 to 8 mm width; dia. 12.5 -25 mm
Bracelets: 3 to 20 mm width; dia. 45 -74 mm
Includes:
Engraving machine M10
Software Gravostyle 7
USB cable
3 clamping jaws for rings/bracelets for inside engraving
Diamond with holder for inside ring engraving
Diamond with holder for inside bracelet engraving
3 clamping jaws for rings/bracelets for outside engraving
Diamond holder for outside engraving
Diamond, long, for outside ring engraving
Diamond for outside bracelet engraving
Allen key 2 mm
Instruction manual on CD
AC adaptor 24V
Requires PC with the following system requirements::
Processor: Dual Core 2.4 GHz or better
RAM: 1GB or more
Hard drive: 20 GB or more
Windows XP with SP2 /Vista Home / 7
Connection 230 V 50 Hz.
Facsimile engravings option.
