Bergeon Device for fitting glasses and snap-on case backs
Product number:
358745
Packaging Unit:
1
Extra order! Delivery time approx. 6 weeks, return is not possible.
Downloads
| Application: | glasses and backs |
|---|---|
| Article name: | Bushing tool |
| Brand: | Bergeon |
| Catalogue item No.: | 8250 |
| Colour: | black |
| Content: | 1,00 |
| Dimensions height mm: | 187,00 |
| Dimensions width mm: | 99,00 |
| External dimension length: | 125,00 |
| Material: | Aluminium |
| Processing mode: | anodised |
| Property: | Pressstöcke für Glasersatz |
| Special feature: | without thrust pads |
| Unit content: | pc |
0 of 0 reviews
Login
No reviews found. Be the first to share your insights.
Accessoires (optional)
Special feature:
45 - 50 - 55 - 60 - 65
For pressing in flat mineral glasses. br
With thread dia. 6 mm.
In cardboard pack.
Special feature:
45 - 50 - 55 - 60 - 65
For pressing in domed mineral glasses. With thread dia. 6 mm
In cardboard pack.
Dimensions Ø mm:
19.000
For pressing in domed mineral glasses. With metal thread dia. 6 mm.
Dimensions Ø mm:
22.000
For pressing in domed mineral glasses. With metal thread dia. 6 mm.
Dimensions Ø mm:
26.000
For pressing in domed mineral glasses. With metal thread dia. 6 mm.
Dimensions Ø mm:
30.000
For pressing in domed mineral glasses. With metal thread dia. 6 mm.
Dimensions Ø mm:
35.000
For pressing in domed mineral glasses. With metal thread dia. 6 mm.
Dimensions Ø mm:
40.000
For pressing in domed mineral glasses. With metal thread dia. 6 mm.
Dimensions Ø mm:
45.000
For pressing in domed mineral glasses. With metal thread dia. 6 mm.
Dimensions Ø mm:
50.000
For pressing in domed mineral glasses. With metal thread dia. 6 mm.
Dimensions Ø mm:
55.000
For pressing in domed mineral glasses. With metal thread dia. 6 mm.
Dimensions Ø mm:
60.000
For pressing in domed mineral glasses. With metal thread dia. 6 mm.
Dimensions Ø mm:
65.000
For pressing in domed mineral glasses. With metal thread dia. 6 mm.
Dimensions Ø mm:
50.000
With thread dia. 6 mm, reversible.
Dimensions Ø mm:
54
With thread dia. 6 mm, reversible.
Dimensions Ø mm:
58
With thread dia. 6 mm, reversible.
Dimensions Ø mm:
62
With thread dia. 6 mm, reversible.
Special feature:
22 - 47 mm
For fitting watch-case bezel.
Can be used for fitting certain case backs.

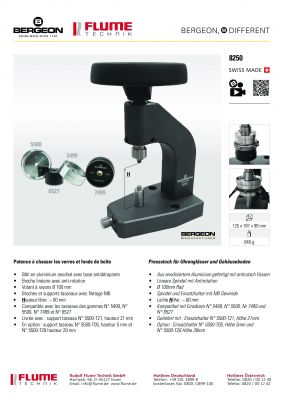

Product information "Bergeon Device for fitting glasses and snap-on case backs"
The Bergeon universal screw press made of anodized aluminum is ideal for setting watch glasses and pressed case backs.
Of course, SWISS MADE in proven Bergeon quality and compatible with many Bergeon inserts.
Benefits:
• Made of anodized aluminum with non-slip base
• Linear spindle with anti-rotation
• Spoked handwheel Ø 100 mm
• Spindle and insert holder with M6 thread
• Working height for watches up to 45 mm high
• Compatible with many Bergeon inserts
• Optionally further insert holders available (our references 219209 (height 5mm) or 219210 (height 28mm)
Scope of delivery:
• Screw press
• M6 mounting adapter with a height of 21mm (also available individually under reference 203243)
Of course, SWISS MADE in proven Bergeon quality and compatible with many Bergeon inserts.
Benefits:
• Made of anodized aluminum with non-slip base
• Linear spindle with anti-rotation
• Spoked handwheel Ø 100 mm
• Spindle and insert holder with M6 thread
• Working height for watches up to 45 mm high
• Compatible with many Bergeon inserts
• Optionally further insert holders available (our references 219209 (height 5mm) or 219210 (height 28mm)
Scope of delivery:
• Screw press
• M6 mounting adapter with a height of 21mm (also available individually under reference 203243)
